BEA Phoenix EX Wide-Field Explosion-Proof Motion Sensor with 100ft Harness - 10PHOENIXEXW100

Details

BEA Phoenix EX Wide-Field Explosion-Proof Motion Sensor with 100ft Harness - 10PHOENIXEXW100

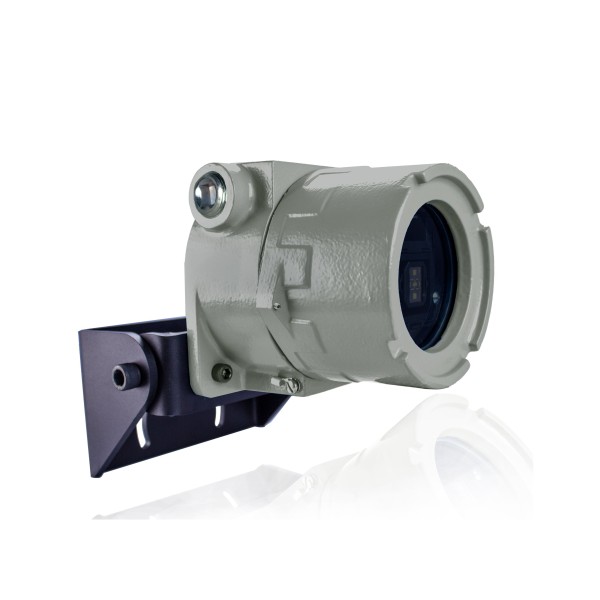

The BEA Phoenix EX 100 stands out as a paramount solution in environments where safety is critical. This motion sensor combines a microwave motion detection sensor with explosion and flame-proof housing, making it ideal for applications like military facilities, chemical plants, compressor stations, and maintenance facilities. Designed with a wide detection field of 30’ × 11’ @ 21’, this sensor can easily oversee a large area and quickly alert to intrusions or other security risks. Created with an integrated tamper alert switch that will automatically send an alert signal if the cover is unscrewed.

Key Features:

• Transmitter Frequency: 24.150 GHz
• Transmitter Radiated Power: < 20 dBm EIRP
• Mounting Height: 11.5 − 21 ft
• Transmitter Power Density: < 5 mW/cm2
• Detection Zone: 30 x 11 ft @ 21 ft
• Materials: Copper-Free Aluminum (Housing); Powder-Coated Steel (Bracket)
• Mains Frequency: 50 − 60 Hz
• Detection Speed: 2 in/s*
• Cable Length:100 ft
• Housing Certification: UL Class I, Div. 1, Groups B, C, D; Class II, Div. 1 & 2, Groups E, F, G; and Class III***
