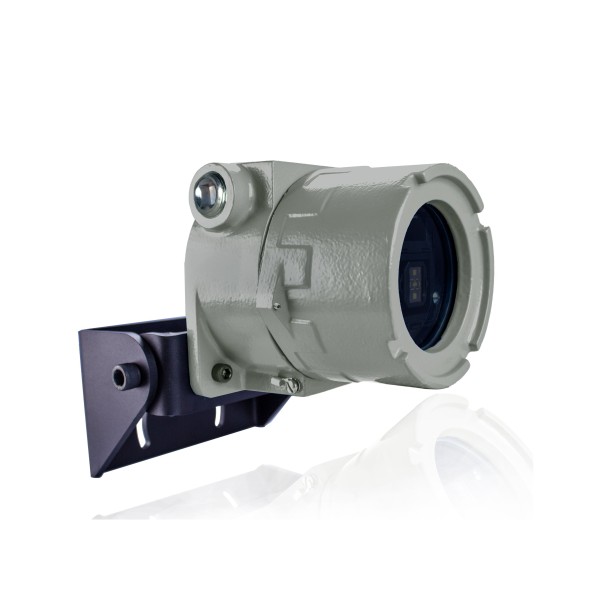

BEA Phoenix EX Low-Mount Industrial Motion Sensor with 100ft Harness (R1 & R2 Config) - 10PHOENIXEXXL100

Details

BEA Phoenix EX Low-Mount Industrial Motion Sensor with 100ft Harness (R1 & R2 Config) - 10PHOENIXEXXL100

This motion sensor is a part of BEA's Phoenix EX family collection, which combines their microwave motion detection sensor with explosion and flame-proof housing, making it ideal for applications like military facilities, chemical plants, compressor stations, and maintenance facilities. Designed with a low mounting height, this sensor effectively alerts to security or intruder activity within seconds. The low mounting height gives a compact detection area to provide focus to highly sensitive areas. Created with an integrated tamper alert switch that will automatically send an alert signal if the cover is unscrewed.

Key Features:

• Transmitter Frequency: 24.150 GHz
• Transmitter Radiated Power: < 20 dBm EIRP
• Mounting Height: 6 1/2' - 11 1/2'
• Transmitter Power Density: < 5 mW/cm2
• Detection Zone: 13' X 6 1/2' @ 8 1/5'
• Materials: Copper-Free Aluminum (Housing); Powder-Coated Steel (Bracket)
• Mains Frequency: 50 − 60 Hz
• Detection Speed: 2 in/s*
• Cable Length:100 ft
• Housing Certification: UL Class I, Div. 1, Groups B, C, D; Class II, Div. 1 & 2, Groups E, F, G; and Class III***
