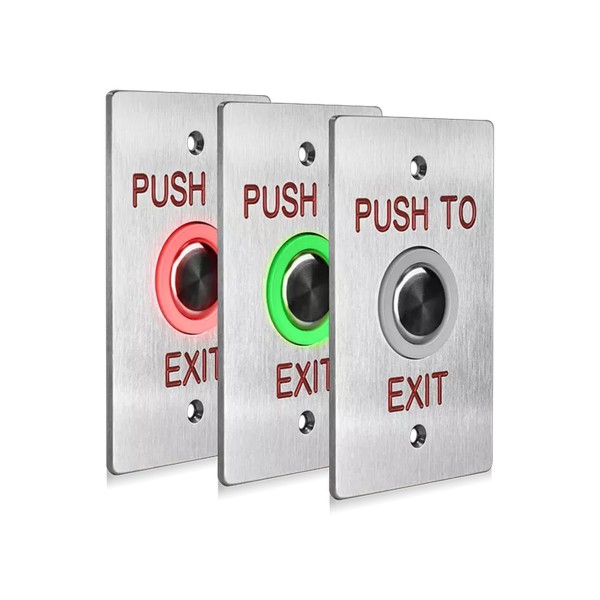

BEA Single Gang Piezoelectric "Push to Exit" Actuator (Text Only, Red) - 10PIEZO241

The BEA Single Gang Piezoelectric "Push to Exit" Actuator is a door sensor for automatic door systems that uses physical pressure for activation. Using piezoelectric technology, this door control converts physical touch into an electric signal that triggers the doors to open. It features "PUSH TO EXIT" text on the front of the stainless steel faceplate, and the LED lights around the push button can be customized. The 10PIEZO241 is versatile with its ability to be wired both normally open or normally closed. This push-to-exit actuator is built for a standard single-gang electrical box.

Key Features:

• Customizable LED Lights
• Adjustable Hold Time
• "PUSH TO EXIT" text
• Selectable fail-safe or fail-secure modes

Specifications:

• Dimensions: 4.5" x 2.75" x 0.5"
• Mounting Style: Single gang
• Material: Stainless Steel
• Hold Time Range: 1-40 seconds
• Input Voltage: 12 to 24V AC/DC
• Current Consumption: Less than 25 mA at 24V DC
• Switch Configuration: Normally Open / Normally Closed
• Contact Rating: 1A at 24V DC maximum
• Operating Temperature Range: -40 Degrees F to +160 Degrees F (-40 Degrees C to +71 Degrees C)
• Protection Rating: IP65 rated for outdoor or harsh environments
