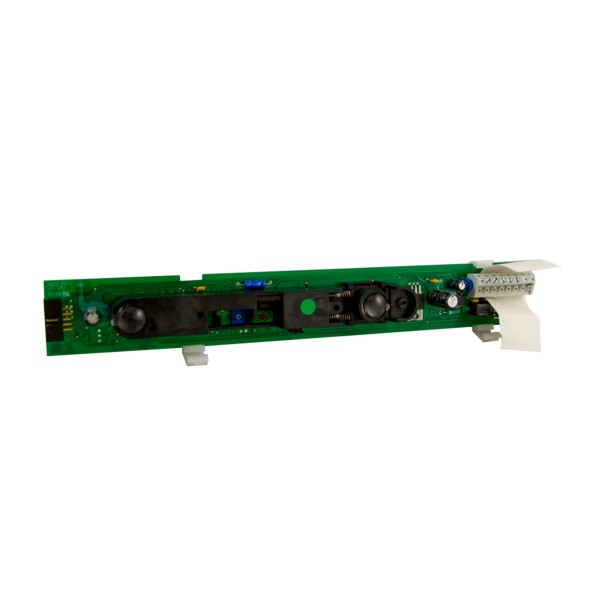

BEA Superscan Primary Module (No Housing) - 10SSTPRIMARY

Key Features:

• Compact presence sensor module designed for use with automatic pedestrian door systems
• Acts as the primary component in BEA's SuperScan system, providing advanced infrared presence detection
• Detects stationary and moving objects within the sensor's field to ensure door safety and compliance with ANSI/BHMA standards
• Ideal for applications where space is limited or custom housing is required
• Compatible with BEA SuperScan mounting accessories and configurations for various door widths

Specifications:

• Detection Technology: Active infrared presence detection
• Power Supply: 12 to 24V AC/DC ~10 percent
• Current Consumption: 80 mA maximum
• Relay Output: SPDT relay rated 1A at 30V DC
• Detection Range: Adjustable up to 80" (depending on mounting height and surface conditions)
• Response Time: Less than 100 milliseconds
• Operating Temperature Range: -4 F to +140 F (-20 C to +60 C)
• Dimensions: Fits standard BEA SuperScan door-mounted configurations
• Compliance: UL 325 and ANSI/BHMA A156.10 standards for pedestrian door safety
