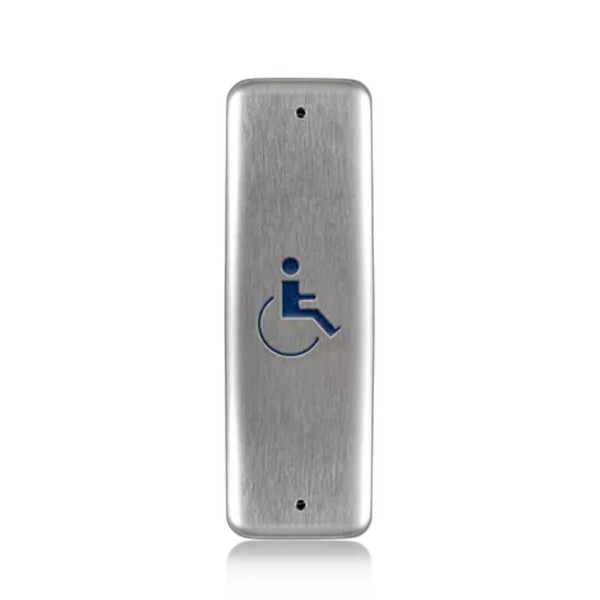

BEA Jamb Stainless Steel Push to Open Push Plate with 2-Stud Microswitch (Accessibility Logo Only) - 10PBJML

Slim in design, the BEA Jamb Stainless Steel Push to Open Push Plate with 2-Stud Microswitch (Accessibility Logo Only) fits perfectly into narrow areas. Made from stainless steel, this push plate features the classic accessibility logo engraved in blue. With a 2-stud microswitch, the BEA Jamb Stainless Steel Push to Open Push Plate with 2-Stud Microswitch (Accessibility Logo Only) offers a crisp push and holds up to everyday traffic.

Features:

• Equipped With A 2-Stud Microswitch For Precise Activation And Extended Service Life
• Features Accessibility Logo Only, Offering A Clean And ADA-Compliant Design
• Compact Jamb Style Ideal For Narrow Door Frames, Guide Rails, And Limited-Space Installations
• Beveled Edges Add A Polished Look And Provide Resistance To Tampering

Specifications:

• Faceplate Material: 16 Gauge 304 Stainless Steel
• Backplate Material: 1/8"" Thick Aluminum
• Switch Type: 2-Stud Microswitch With COM / NO / NC Contacts
• Electrical Rating: 15 A, 125/250 VAC, UL Recognized
• Mounting Screws: Stainless Steel 6-32 x 1"" And 8-32 x 1""; Allen Head Size 5/64""
• Dimensions: 1.50"" Width x 4.75"" Height x 0.62"" Depth
