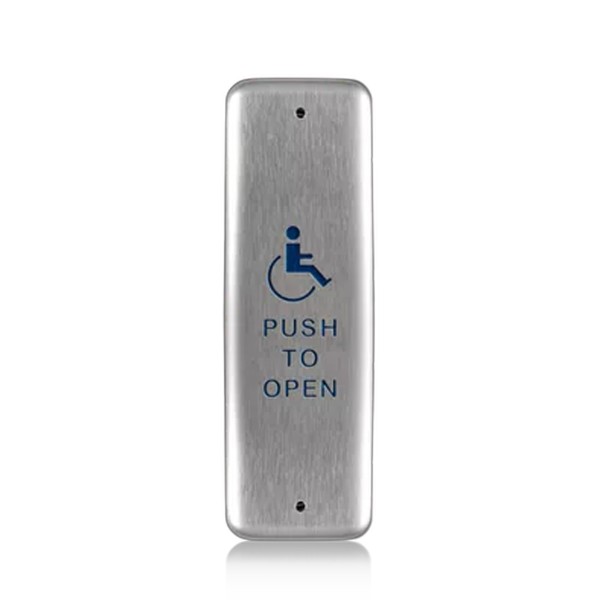

BEA Jamb Stainless Steel "Push to Open" Push Plate with 2-Stud Microswitch (Text & Accessibility Logo) - 10PBJM1

Narrowly designed, the BEA Jamb Stainless Steel "Push to Open" Push Plate with 2-Stud Microswitch (Text & Accessibility Logo) fits into any smaller space. This plate has engraved blue “Push to Open” text and an accessibility logo for ADA compliance. The BEA Jamb Stainless Steel "Push to Open" Push Plate with 2-Stud Microswitch (Text & Accessibility Logo) is perfect for commercial, healthcare, and educational areas, and is made from stainless steel.

Features:

• Constructed from 16 Gauge 304 Stainless Steel For Reliable Use In Commercial And Industrial Settings
• Equipped With A 2-Stud Microswitch For Enhanced Contact And Extended Lifespan
• Features ""Push To Open"" Text And Accessibility Logo For ADA-Compliant Entry Systems
• Compact Jamb Design Fits Perfectly In Narrow Spaces Such As Door Frames Or Rails

Specifications:

• Faceplate Material: 16 Gauge 304 Stainless Steel
• Backplate Material: 1/8"" Thick Aluminum
• Switch Type: 2-Stud Microswitch With COM / NO / NC Contacts
• Electrical Rating: 15 A, 125/250 VAC, UL Recognized
• Mounting Screws: Stainless Steel 6-32 x 1"" And 8-32 x 1""; Allen Head Size 5/64""
• Dimensions: 1.50"" Width x 4.75"" Height x 0.62"" Depth
