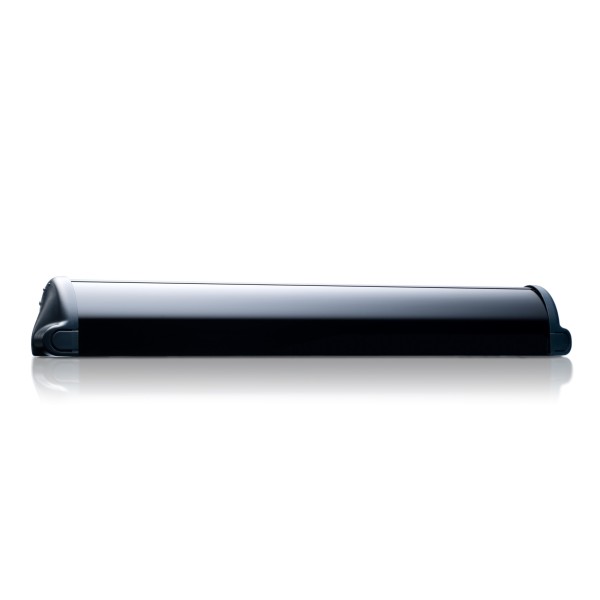

BEA Quadscan I Custom Length Safety Sensor - 10QUADSCANICUSTOM

Using infrared technology, the BEA Quadscan I Custom Length Safety Sensor delivers an independent approach and safety detection for automatic swing doors. With customizable heights from 43” to 118”, this sensor offers flexibility. Featuring adjustable settings for frequency, background reflectivity, and detection zones, the BEA Quadscan I Custom Length Safety Sensor is ideal for commercial, healthcare, and public entryway environments.

Features:

• Door-Mounted Active Infrared Safety Sensor for Pedestrian Automatic Swinging Doors
• Independent Relays for Approach-Side and Safety-Side Outputs
• Four DIP Switches for User-Friendly Adjustment of Door Side, AIR Frequency, Background Reflectivity and Uncovered Zone Height
• Easy Installation and Setup Without Remote Control

Specifications:

• Technology: Active Infrared
• Mounting Height: 43 in to 118 in
• Max Number of Modules: 4; Up to 6 if 24 VDC
• Max Power Consumption (Each Module): 65 mA @ 24 VAC; 75 mA @ 24 VDC
• Range Adjustment: Mechanical Range Adjustment Screw
• Reaction Time: 64 ms (Typical)
