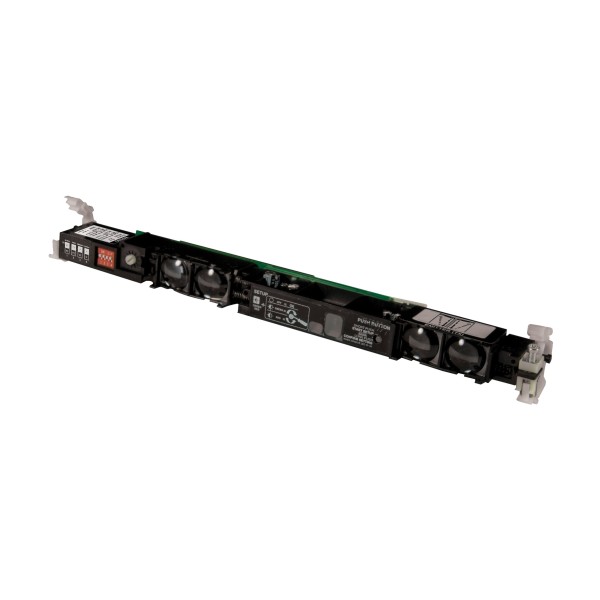

BEA Quadscan I Presence Sensor - 10QSPRIMARY

Key Features:

• Door-Mounted Active Infrared Presence Sensor Designed for Pedestrian Automatic Swinging Doors
• Independent Relays for Approach Side and Safety Side Outputs
• Four DIP Switches for User-Friendly Adjustment of Door Side, Frequency, Background Reflectivity and Uncovered Zone Height
• Easy Setup Without Remote Control; Mechanical Range Adjustment via Screw
• External Monitoring Supported When Paired with a Monitoring-Capable Door Control System

Specifications:

• Technology: Active Infrared
• Mounting Height: 3 ft 7 in to 9 ft 10 in (43 to 118")
• Max Number of Modules: 4 (Up to 6 If 24 VDC)
• Detection Field at Finished Floor: 15 3/4 in Wide x 2 3/4 in Deep @ 78 in Mounting Height
• Range Adjustment: Mechanical Range Adjustment Screw
• Reaction Time: 64 ms (Typical)
• Input: 1 Optocoupler (Free of Potential Contact)-Max Contact Voltage: 30 V; Voltage Threshold: High > 10 VDC; Low< 1 VDC
• Output: 2 Relays (Free of Potential Contact)-Max Contact Voltage: 42 VAC/VDC; Max Contact Current: 1 A (Resistive); Max Switching Power: 30 W (DC) / 60 VA (AC)
• Supply Voltage: 12 V-24 VAC ~10 Percent or 12 V-30 VDC- 5 Percent / +10 Percent
• Max Power Consumption (Each Module): 65 mA @ 24 VAC; 75 mA @ 24 VDC
• Object Reflectivity: Minimum 5 Percent @ IR Wavelength of 850 nm
• Degree of Protection: IP53
• Operating Temperature Range:- 13 F to 131 F ( - 25 C to +55 C)
• Humidity: 0 Percent to 95 Percent Non-Condensing
