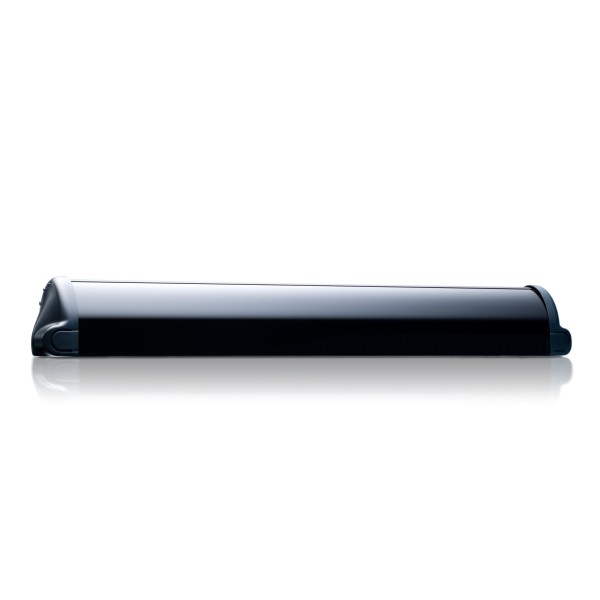

BEA Quadscan I Safety Sensor - 10QUADSCANI

Key Features:

• Door-Mounted Active Infrared Safety Sensor for Pedestrian Automatic Swinging Doors
• Independent Relays for Approach-Side and Safety-Side Outputs
• Four DIP Switches for User-Friendly Adjustment of Door Side, AIR Frequency, Background Reflectivity and Uncovered Zone Height
• Easy Installation and Setup Without Remote Control
• Universal Module Supports Both Hinge Side and Leading Edge Configurations

Specifications:

• Technology: Active Infrared
• Mounting Height: 43 in to 118 in
• Max Number of Modules: 4; Up to 6 if 24 VDC
• Detection Field at Finished Floor: 15.75 in x 2.75 in @ 78 in Mounting Height
• Range Adjustment: Mechanical Range Adjustment Screw
• Reaction Time: 64 ms (Typical)
• Input: 1 Optocoupler (Free of Potential Contact)-Max Contact Voltage 30 V-Voltage Threshold High: >10 VDC; Low:<1 VDC
• Output: 2 Relays (Free of Potential Contact)-Max Contact Voltage 42 VAC/VDC-Max Contact Current 1 A (Resistive)-Max Switching Power 30 W (DC) / 60 VA (AC)
• Supply Voltage: 12 V to 24 VAC ~10 Percent or 12 V to 30 VDC- 5 Percent / +10 Percent
• Max Power Consumption (Each Module): 65 mA @ 24 VAC; 75 mA @ 24 VDC
• Object Reflectivity: Minimum 5 Percent @ IR Wavelength 850 nm
• Degree of Protection: IP53
• Operating Temperature Range: -13 F to +131 F
• Humidity: 0 Percent to 95 Percent Non-Condensing
