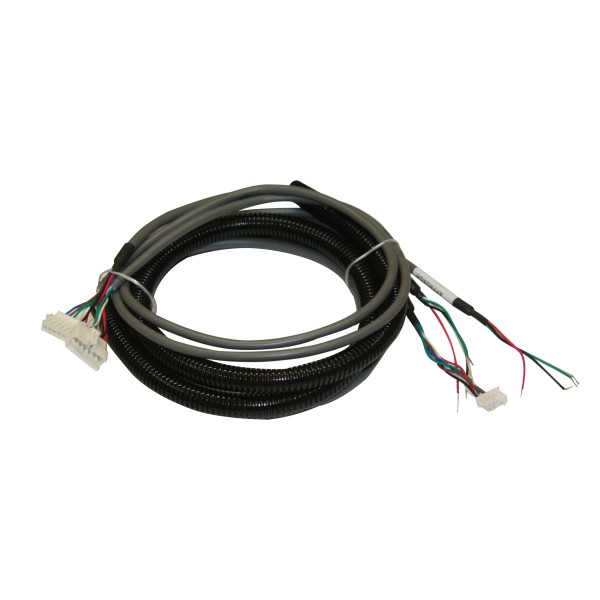

BEA Superscan-T Quick Disconnect for 1 Door - 10SSQD

Key Features:

• Quick Disconnect Harness Designed for Use with Superscan-T Door-Mounted Sensors
• Pre-Terminated Plug Assembly for Streamlined Wiring and Faster Field Replacement
• Dual Harness Segments for Approach Side and Safety Side Installations (Each ~27 in Length)
• Color-Coded Wiring per BEA Standard for Accurate Connections and Simplified Troubleshooting
• Compatible with Superscan-T Systems to Reduce Downtime During Retrofits or Maintenance

Specifications:

• Length of Each Harness Segment: Approximately 27 in
• Wire Color Coding: Approach Side and Safety Side-Includes Red (Power +), Black (Power -), White (Common), Green (Activation), orange (Inhibit +), Brown (Inhibit Ground), Purple (Test -), Purple/Yellow (Test +)
• Connectors: SMP / SMR Plug Set with Keyed Locking Interface
• Compatible Voltage: 12-24 VAC/VDC ~10 Percent when used with Superscan-T Module
• Operating Temperature Range: -22 F to 140 F (-30 C to +60 C)
