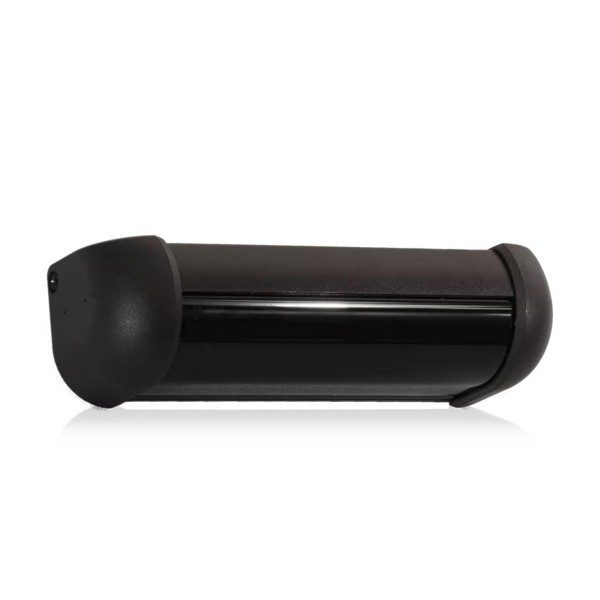

BEA R2E-100 Request-to-Exit Active Infrared Security Sensor - 10R2E-100

Key Features:

• Focused Active Infrared Request-to-Exit Sensor Designed to Detect Intent to Exit via Door Handle Reach
• Adjustable Tilt Angle from 0 Degrees to 10 Degrees for Precise Coverage above Door Lever
• Adjustable Detection Range from 20 in to 48 in via Potentiometer; Ideal for Swing Doors up to 7 Feet
• Two Form "C" Relay Outputs (NO/NC) and Three Dry Auxiliary Inputs for REX Push Button, Card Reader, and Door Position Switch
• Built-in Audible Alarm with Adjustable Volume and Multiple Re-lock Modes (Timer or Door Position Triggered)

Specifications:

• Technology: Focused Active Infrared
• Supply Voltage: 12-24 VAC/VDC ~10 Percent
• Current Consumption: 155 mA (Sounder Off) / 200 mA (Sounder Max Volume)
• Operating Temperature Range: -20 F to +120 F (Non-UL); +32 F to +120 F for UL Listed Installations
• Humidity: 0 Percent to 93 Percent Non-Condensing (ULC-S319); 0 Percent to 85 Percent Non-Condensing (UL-294)
• Detection Range: 20 in to 48 in (Adjustable via Potentiometer)
• Relay Contacts: Two Form "C" Contact Sets Rated 1.3 A at 24 VAC / 30 VDC
• Relay Hold Time: Adjustable from 0.5 Seconds to 60 Seconds via Potentiometer
• Sounder: Up to 85 dB Max with Adjustable Volume
• Dimensions: 6.7 in (W) x 2 in (H) x 1.7 in (D)
• Material / Color: ABS and PC Housing-Black

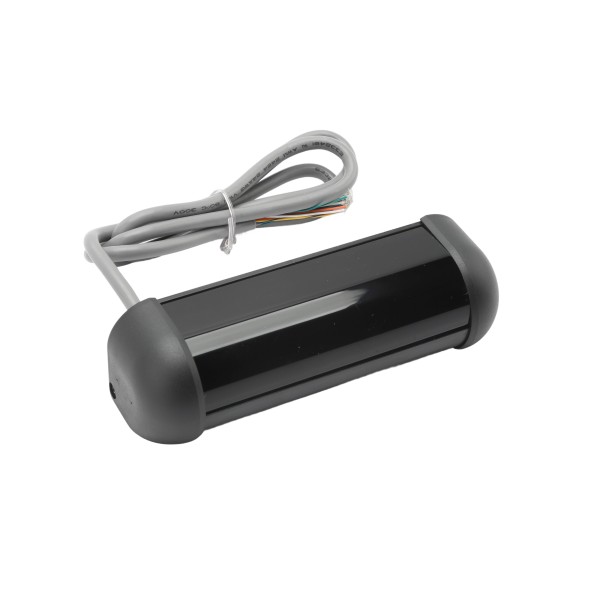

• Wiring Interface: JST 14-Pin Connector with 4 ft Cable
• Certifications: UL 294 / ULC S319 Listed; FCC Part 15 Compliant
