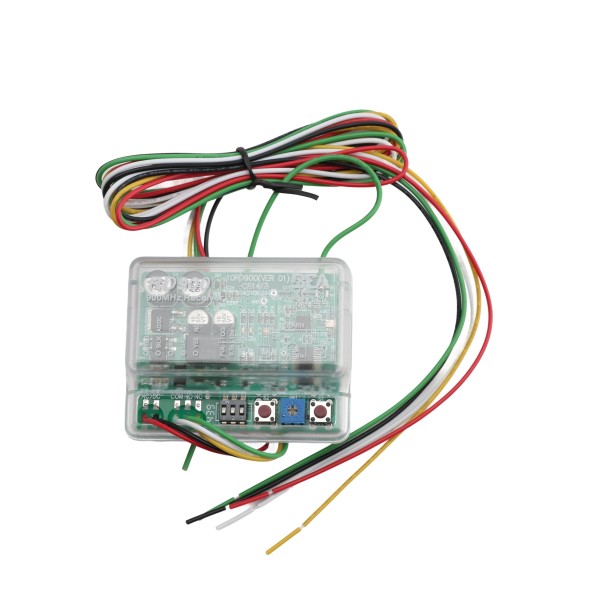

BEA Long Range Digital Receiver for Wireless Door Access (900 MHz) - 10RD900

Key Features:

• Frequency-hopping 900 MHz wireless technology provides extended range and strong signal penetration through obstacles
• Supports extended-hold, toggle, and pulse relay modes for customizable door activation control
• LED indicators display signal strength, activation feedback, and learn mode status
• Compact receiver module allows for seamless integration into automatic door systems and retrofit installations
• Compatible with multiple wireless transmitters for one-to-many control configurations

Specifications:

• Frequency: 908-918 MHz (digital, frequency-hopping)
• Supply Voltage: 12-24 V AC/DC
• Contact Rating: 1 A at 30 V DC; 0.5 A at 125 V AC; 0.3 A at 60 V DC
• Operating Temperature Range: 14 F to 131 F
• Transmitter Capacity: Up to 75 programmable units per receiver
• Unit Dimensions: approximately 2.5" W x 2.0" D x 0.75" H
• Certifications: FCC and IC compliant
