Details

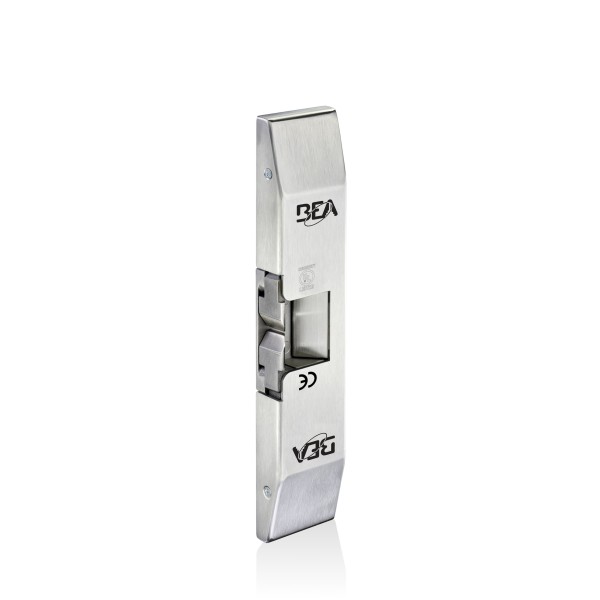

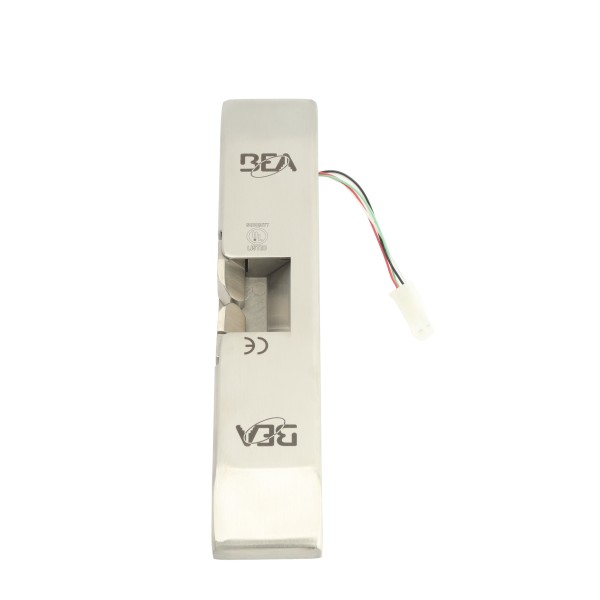

BEA 3/4" UL Rim Exit Electric Strike (24V DC) - 10STRIKEREV34

Key Features:

• Surface-mounted rim exit electric strike compatible with 3/4 in latch projection hardware
• Field-selectable mode: 12 V or 24 V DC operation and either fail-safe or fail-secure configuration
• No frame cutting required; designed for installation with rim exit devices on metal or wood frames
• Heavy-duty construction rated for high-security access control,UL 294 & UL 1034 listed
• Modular faceplate options available for hollow-metal, aluminum and wood frame installations

Specifications:

• Supply Voltage: 24 V DC (also supports 12 V DC)
• Current Draw: 270 mA at 24 V DC (540 mA at 12 V DC)
• Static Strength: 1500 lbs (680 kg)
• Dynamic Strength: 70 ft-lbs
• Endurance: 250,000 cycles (UL tested) / 1,000,000 cycles (factory tested)
• Operating Modes: Fail-Safe or Fail-Secure (user selectable)
• Operating Temperature Range: 14 F to 120 F (-10 C to +49 C)
• Housing Material / Finish: Brushed Stainless Steel (US32D)
• Frame Application: Compatible with Metal or Wood Frames
• Latch Throw Compatibility: 3/4 in (and 1/2 in depending on application)
