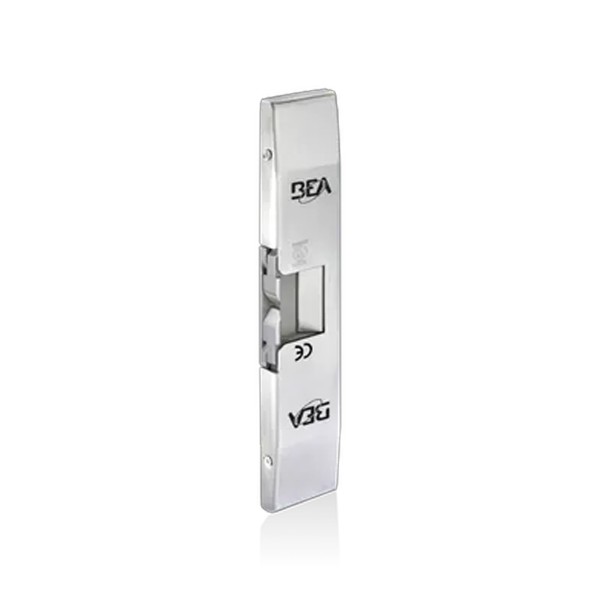

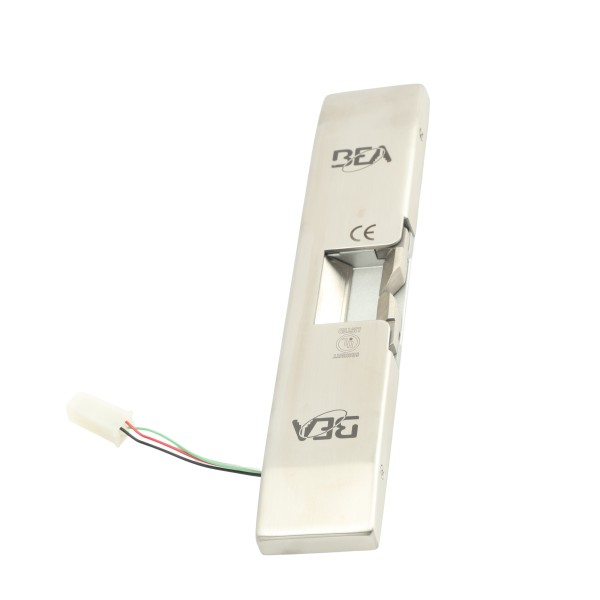

BEA 1/2" UL Rim Exit Electric Strike (12V DC) - 10STRIKEREV12

Key Features:

• Surface-mounted rim exit electric strike designed for exit devices with 1/2 in or 3/4 in latch projection
• Field-selectable for 12 VDC or 24 VDC operation and switchable between fail-safe or fail-secure modes
• Fully surface-mounted installation requiring no frame cutting, ideal for aluminum or narrow-style frames
• Heavy-duty construction with UL 294 and UL 1034 listings for access control and burglary-resistant performance
• Integrated modular plug-in wiring connectors for fast installation and simple maintenance

Specifications:

• Supply Voltage: 12 VDC
• Current Draw: 540 mA at 12 VDC
• Static Strength: 1500 lbs (680 kg)
• Dynamic Strength: 70 ft-lbs
• Endurance: 250,000 cycles (UL tested) / 1,000,000 cycles (factory tested)
• Mode: Fail-Safe or Fail-Secure (User selectable)
• Operating Temperature Range: 14 F to 120 F (-10 C to +49 C)
• Material / Housing: Brushed Stainless Steel (US32D Finish)
• Frame Application: Compatible with Metal, Wood, and Aluminum Frames
• Latch Throw Compatibility: 1/2 in or 3/4 in
