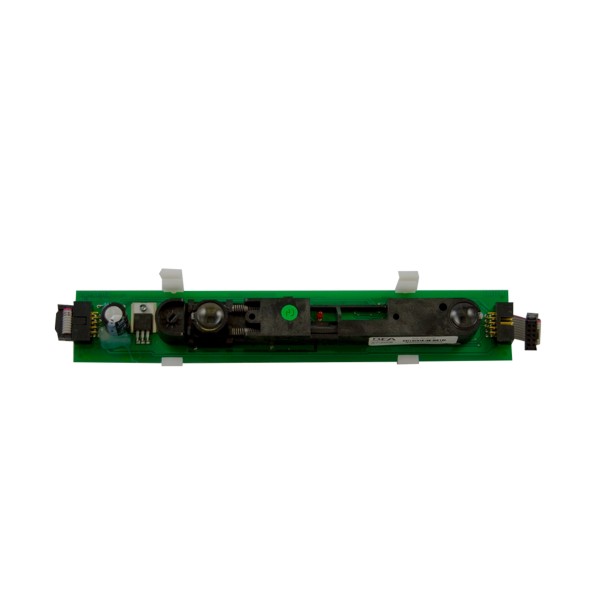

BEA Superscan Secondary Module with Ribbon Connector - 10SSTSECONDARY

Key Features:

• Secondary presence sensor module designed to pair with BEA's SuperScan system for enhanced safety coverage on automatic pedestrian doors
• Utilizes an active infrared detection field to identify stationary or moving obstacles in the door path
• Ribbon connector enables simple linking to the primary module for synchronized operation and communication
• Compact and lightweight design allows easy mounting inside the door header or frame
• Complies with ANSI/BHMA A156.10 safety standards for automatic pedestrian door systems

Specifications:

• Detection Technology: Active infrared presence detection
• Power Supply: 12 to 24V AC/DC ~10 percent
• Detection Range: Adjustable up to 80" depending on door configuration and mounting height
• Connection: Ribbon cable interface for direct link to SuperScan primary module
• Response Time: Less than 100 milliseconds
• Relay Output: Follows primary module relay for synchronized detection signals
• Operating Temperature Range: -4 F to +140 F (-20 C to +60 C)
• Mounting: Header or top door rail mounting for door-mounted configurations
• Compliance: Meets UL 325 and ANSI/BHMA A156.10 standards for pedestrian door safety
