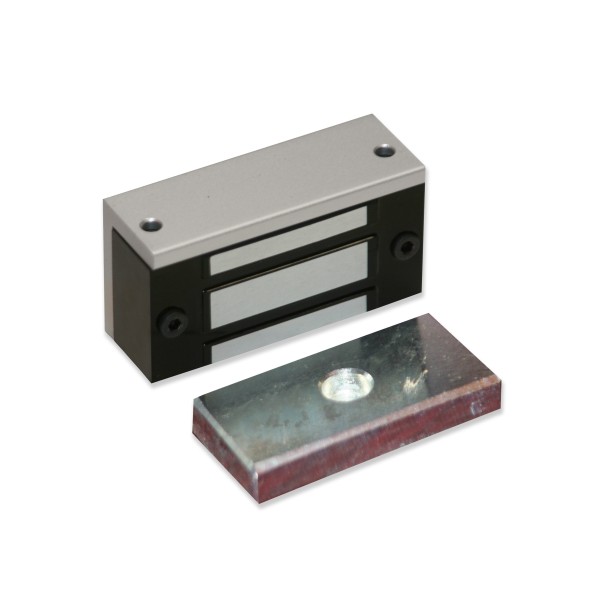

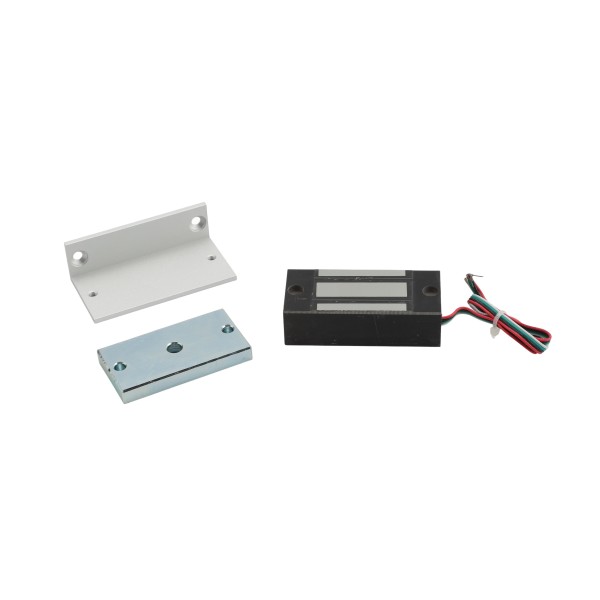

BEA 12/24VDC Single Mini Electric Cabinet Lock (80lb Hold Force) - 10MAGLIFELOCK9

Key Features:

• Compact electric cabinet lock designed for secure access control in small enclosures and cabinets
• Provides an 80 lb holding force, ensuring reliable locking strength for doors and panels
• Operates on low voltage (12/24VDC), suitable for integration with most access control and automation systems
• Fail-safe operation releases automatically upon power loss, ideal for safety-critical environments
• Durable construction with a stainless steel bolt and high-quality housing for long-term use
• Suitable for both single and double-door cabinet applications in indoor and outdoor environments
• Easy to install with versatile mounting options and minimal maintenance requirements

Specifications:

• Lock Type: Miniature electric cabinet lock
• Holding Force: 80 lb
• Voltage: 12/24V DC dual-voltage operation
• Current Draw: 500 mA at 12V DC / 250 mA at 24V DC
• Operation Mode: Fail-safe (unlocks when power is removed)
• Bolt Material: Stainless steel
• Housing Material: Anodized aluminum or equivalent corrosion-resistant alloy
• Mounting: Surface or flush mount compatible
• Operating Temperature: -4 F to +131 F (-20 C to +55 C)
• Applications: Cabinet doors, electrical enclosures, kiosks, and small access panels
