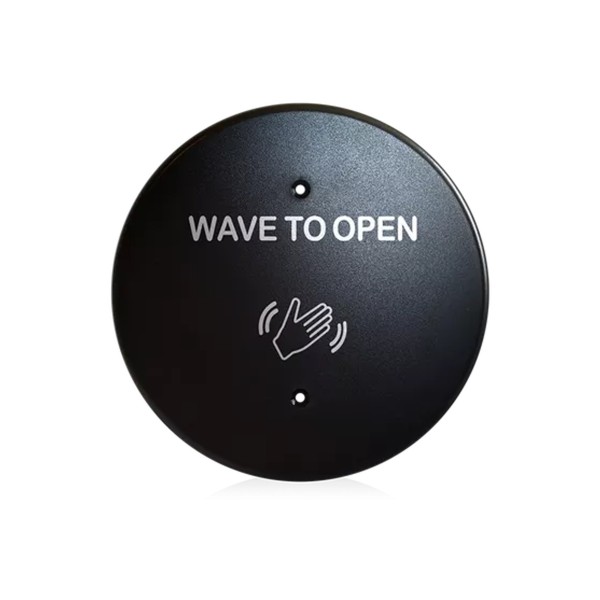

BEA Standard Magic "Wave to Open" Actuator 6" Round Plate (Text & Logo, Gray) - 10MS31R-G

Key Features:

• Touchless microwave actuator for automatic door activation, providing a hygienic and convenient hands-free solution
• Large 6-inch gray round faceplate with "Wave to Open" text and accessibility logo for clear visibility and ADA compliance
• Microwave Doppler radar sensing technology accurately detects motion within an adjustable range of 4 to 24"
• Supports both momentary and toggle relay modes for flexible integration with automatic door systems
• IP54-rated enclosure protects against dust and moisture, ideal for indoor or semi-protected locations
• Designed to minimize false activations while maintaining quick response and reliable door triggering

Specifications:

• Detection Technology: Microwave Doppler radar motion detection
• Detection Range: Adjustable from 4 to 24"
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay rated 1 A at 125 VAC / 60 VDC
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP54
• Faceplate Dimensions (Round): 6-inch diameter x 0.25-inch thickness
• Faceplate Color: Gray with "Wave to Open" text and accessibility logo
• Certifications: FCC and Industry Canada compliant
