Details

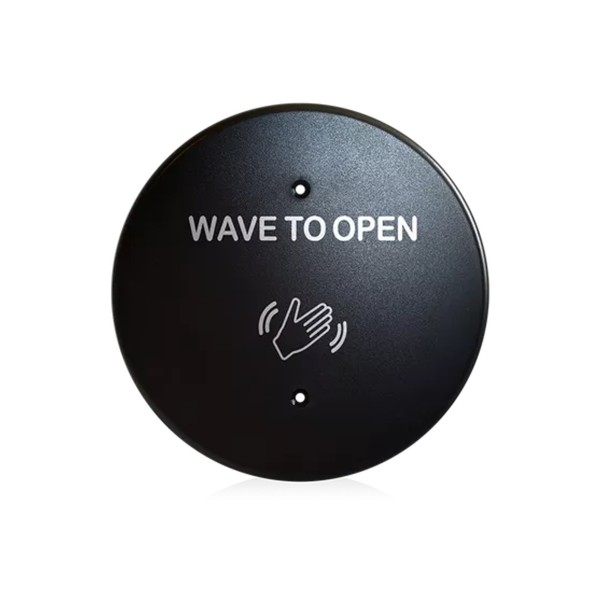

BEA Standard Magic "Wave to Open" Actuator 6" Round Plate (Text & Logo, Black) - 10MS31R-B

Key Features:

• BEA MS31 Standard Magic "Wave to Open" actuator uses microwave radar technology for hands-free activation of automatic doors
• Large 6-inch round black faceplate features bold "Wave to Open" text and accessibility logo for high visibility and ADA compliance
• Touchless operation enhances hygiene by reducing contact with door activation surfaces
• Adjustable detection range between 4 and 24" allows fine-tuned performance based on installation requirements
• Weather-resistant IP54-rated housing suitable for indoor and light outdoor applications
• Configurable relay modes include toggle and momentary options for integration with various door control systems

Specifications:

• Technology: Microwave Doppler radar motion detection
• Detection Range: Adjustable from 4 to 24"
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Output Relay: Form C relay rated 1 A at 125 VAC / 60 VDC
• Power Consumption: Under 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Protection: IP54-rated for dust and moisture resistance
• Faceplate Dimensions (Round): 6-inch diameter x 0.25-inch thickness
• Faceplate Color: Black with "Wave to Open" text and accessibility logo
• Certifications: FCC and Industry Canada compliant
