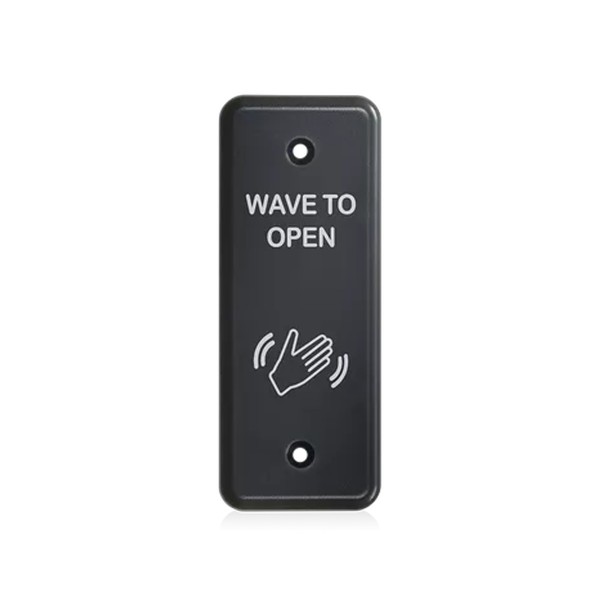

BEA Standard Magic "Wave to Open" Actuator Jamb Plate (Text & Logo, Gray) - 10MS31J-G

Key Features:

• BEA MS31 Standard Magic "Wave to Open" touchless actuator provides hygienic, hands-free activation for automatic doors
• Microwave Doppler radar sensing detects hand motion within a customizable range of 4 to 24"
• Gray jamb-style faceplate with clear "Wave to Open" text and accessibility logo for ADA compliance
• Compact design ideal for jamb installations where space is limited
• Selectable relay modes allow toggle or momentary operation to suit door control configurations
• IP54-rated enclosure protects against dust and moisture for reliable indoor use

Specifications:

• Detection Technology: Microwave Doppler radar
• Detection Range (adjustable): 4 to 24"
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Output Relay Rating: Form C relay, 1 A max at 125 VAC / 60 VDC
• Power Consumption: Under 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP54
• Faceplate Dimensions (Jamb Style): 4.5 in (H) x 1.75 in (W) x 0.25 in (T)
• Faceplate Color: Gray with "Wave to Open" text and accessibility logo
• Compliance: FCC and Industry Canada certified
