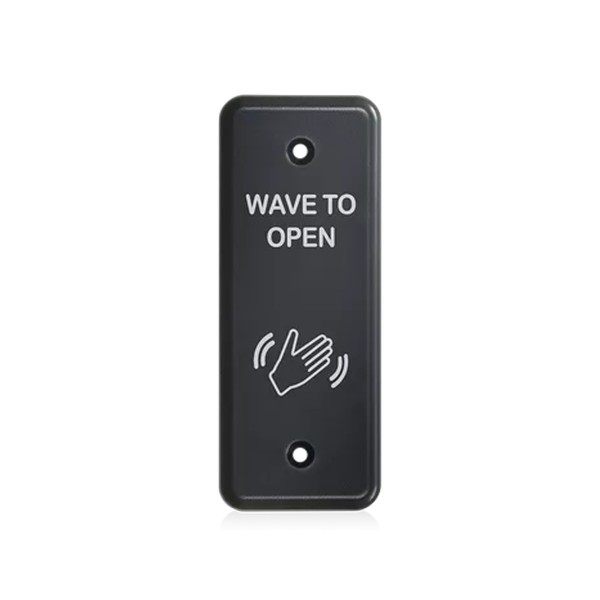

BEA Standard Magic "Wave to Open" Actuator Jamb Plate (Text & Logo, Black) - 10MS31J-B

Key Features:

• Touchless activation sensor using microwave Doppler radar technology for hygienic, hands-free door control
• Detectors zone can be adjusted from 4 to 24" to suit different installation areas.
• Selectable toggle or timed relay modes allow flexibility in activation behaviour.
• Weather-resistant enclosure rated to IP54, suitable for indoor or washable outdoor installations.
• Text and logo faceplate in black finish makes it clearly visible and appropriate for jamb mounting.

Specifications:

• Technology: Microwave Doppler Radar.
• Radiated Frequency: 24.125 GHz.
• Detection Range: 4-24" (adjustable).
• Supply Voltage: 12-24 VAC ~10% or 12-24 VDC +30%/-10%.
• Output Relay Rating: 60 VDC / 125 VAC, 1 A resistive.
• Power Consumption:< 1.5 W.
• Operating Temperature: -4 F to +131 F.
• Enclosure Rating: IP54.
• Dimensions (Jamb-style faceplate): Approx. 4.5" H x 1.75" W x 0.25" T.
