Details

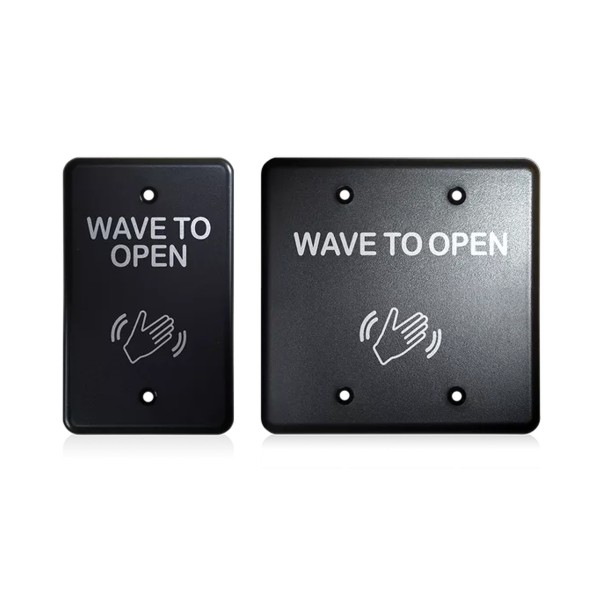

BEA Standard Magic "Wave to Open" Actuator Single & Double Gang Plate Kit (Text & Logo, Gray) - 10MS31U-G

Key Features:

• Hands-free microwave door actuator for hygienic activation of automatic doors in high-traffic areas
• Includes both single-gang and double-gang gray faceplates with "Wave to Open" text and accessibility logo for flexible installation options
• Microwave Doppler radar sensing technology detects motion within an adjustable range of 4 to 24" for precise operation
• Selectable momentary and toggle relay modes support compatibility with a variety of door control systems
• IP54-rated for protection against dust and moisture, ideal for interior and protected exterior installations
• Engineered for reliability in commercial, healthcare, and industrial areas requiring contactless entry

Specifications:

• Technology: Microwave Doppler radar motion detection
• Detection Range: Adjustable from 4 to 24"
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay rated 1 A at 125 VAC / 60 VDC
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP54
• Included Faceplates: Single-gang and double-gang gray faceplates
• Faceplate Color: Gray with "Wave to Open" text and accessibility logo
• Certifications: FCC and Industry Canada compliant
