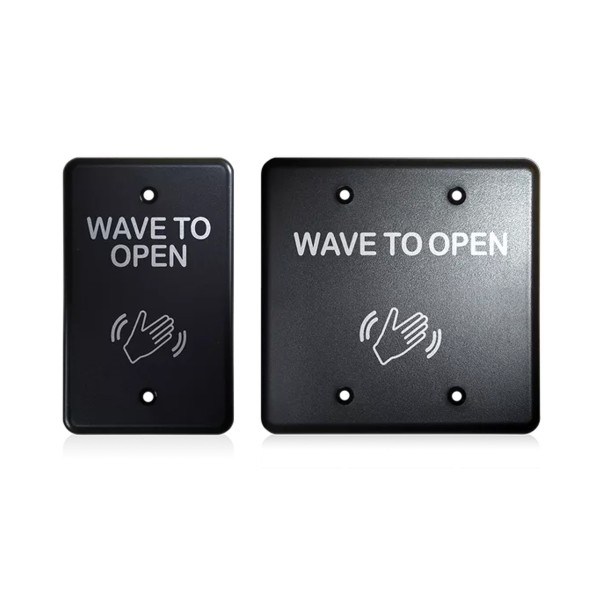

BEA Standard Magic "Wave to Open" Actuator Single & Double Gang Plate Kit (Text & Logo, Black) - 10MS31U-B

Key Features:

• Touchless microwave actuator designed for automatic door activation, ensuring hygienic, hands-free operation
• Includes both single-gang and double-gang black faceplates with "Wave to Open" text and accessibility logo for installation flexibility
• Microwave Doppler radar sensing detects motion within an adjustable range of 4 to 24" for reliable activation
• Supports both momentary and toggle relay modes for compatibility with a wide range of automatic door systems
• Durable IP54-rated construction protects against dust and moisture, suitable for indoor and semi-outdoor areas
• Easy integration with BEA receivers and door operators for commercial, healthcare, and industrial applications

Specifications:

• Technology: Microwave Doppler radar motion detection
• Detection Range: Adjustable between 4 and 24"
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay rated 1 A at 125 VAC / 60 VDC
• Power Consumption: Under 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Protection: IP54 for dust and moisture resistance
• Faceplate Options: Single-gang and double-gang, both included
• Faceplate Color: Black with "Wave to Open" text and accessibility logo
• Certifications: FCC and Industry Canada compliant
