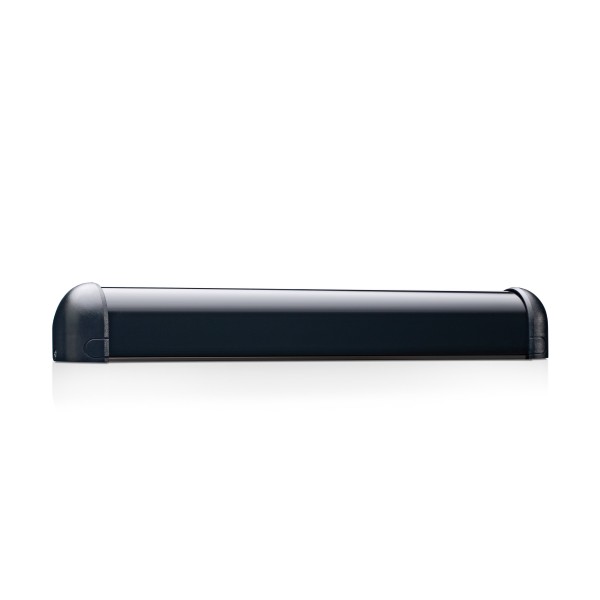

BEA SuperScan I Primary Presence Sensor Unit (40" for 42" Doors) - 10SSTI40

Key Features:

• Door-mounted Active Infrared Presence Sensor for Automatic Swinging, Revolving, Folding and Low-Energy Doors
• Triangulation Technology Detects Pedestrian Presence While the Door Is Opening or Closing
• Field-Cuttable Housing Up to 48 in Length for Custom Door Widths
• Master Module Supports Daisy-Chaining With Slave Modules for Wide Doors Up To 42 in
• Auxiliary Background Analysis Mode Available to Minimize False Activations

Specifications:

• Technology: Active Infrared With Background Suppression
• Detection Mode: Presence (Triangulation Distance Measurement)
• Power Supply: 12-24 VAC/VDC ~10 Percent
• Detection Range: 0-8 ft
• Distance Adjustment: 2-8 ft Via Rotating Cam With Linear Adjustment
• Maximum Mounting Height: 8 ft
• Detection Signal Duration: Infinite Presence Detection
• Detection Time: Less Than 50 ms
• Output Hold Time: Adjustable 0.1-4.5 s Via Potentiometer
• Output Interface: Relay-Max Contact Rating 1 A at 30 V (Resistive)
• Operating Temperature Range: -30 F to 140 F
• Material / Housing: Aluminum & ABS-Black
• Protection Degree: IP54
• PCB Dimensions-Primary Module: 10.91 in x 1.5 in; Secondary Module: 8.75 in x 1.5 in
