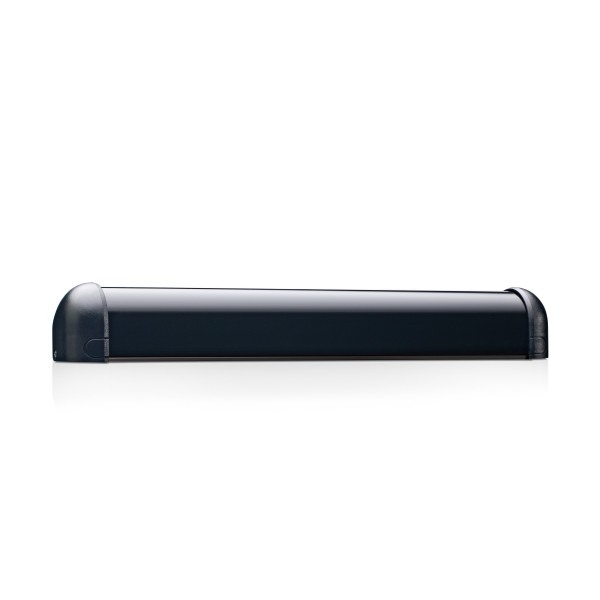

BEA SuperScan I Primary Presence Sensor Unit (42" for 44" Doors) - 10SSTI42

Key Features:

• Door-mounted active infrared presence sensor for automatic swinging, revolving, folding and low-energy doors
• Triangulation technology detects pedestrian presence while the door is opening or closing
• Field-cuttable housing up to 48 in length for custom door widths
• Master module supports daisy-chaining with slave modules for wide doors up to 44 in leaf width
• Auxiliary background analysis mode available to minimize false activations

Specifications:

• Technology: Active Infrared With Background Suppression
• Detection Mode: Presence (Triangulation Distance Measurement)
• Power Supply: 12-24 VAC/VDC ~10 Percent
• Detection Range: 0 - 8 ft
• Distance Adjustment: 2 - 8 ft via rotating cam with linear adjustment
• Maximum Mounting Height: 8 ft
• Detection Signal Duration: Infinite Presence Detection
• Detection Time: Less Than 50 ms
• Output Hold Time: Adjustable-0.1 - 4.5 s via potentiometer
• Output Interface: Relay-Max Contact Rating: 1 A at 30 V (Resistive)
• Operating Temperature Range: -30 F to 140 F
• Material / Housing: Aluminum & ABS-Black
• Protection Degree: IP54
• PCB Dimensions-Primary Module: 10.91 in x 1.5 in; Secondary Module: 8.75 in x 1.5 in
