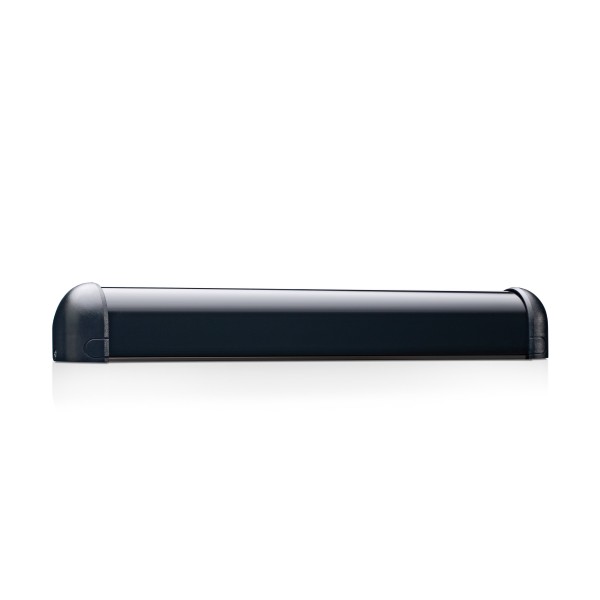

BEA SuperScan I Primary Presence Sensor Unit (Custom Length, 13" Minimum) - 10SSTICUSTOM

Built for doors with a width starting at 13”, the BEA SuperScan I Primary Presence Sensor Unit (Custom Length, 13" Minimum) adapts to nearly any door. Featuring triangulation infrared sensing, this sensor offers full detection for narrow or irregular doors. The BEA SuperScan I Primary Presence Sensor Unit (Custom Length, 13" Minimum) has a cuttable housing and an adjustable range, so you always get a perfect fit.

Features:

• Triangulation technology detects pedestrian presence while the door is opening or closing
• Custom-length housing beginning at 13 in minimum, field-cut and adjustable to match any door width
• Master module supports daisy-chaining with slave modules for wide or unusual door widths
• Auxiliary background analysis mode available to reduce false activations

Specifications:

• Technology: Active Infrared with Background Suppression
• Detection Range: 0 - 8 ft
• Distance Adjustment: 2 - 8 ft via Rotating Cam with Linear Adjustment
• Maximum Mounting Height: 8 ft
• PCB Dimensions-Primary Module: 10.91 in x 1.5 in; Slave Module: 8.75 in x 1.5 in
• Detection Time: Less Than 50 ms
