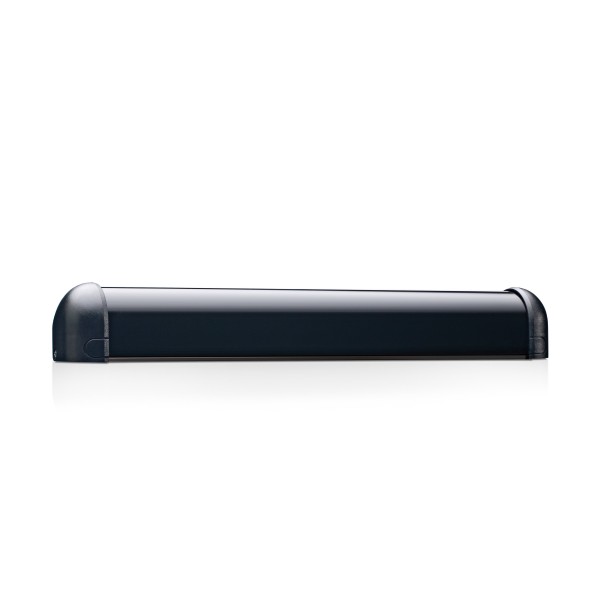

BEA SuperScan I Primary Presence Sensor Unit (36" for 36" Doors) - 10SSTI

Key Features:

• Door-mounted active infrared presence sensor for automatic swinging, revolving, folding and low-energy doors
• Triangulation technology detects pedestrian presence while the door is opening or closing, reducing false triggers from floor variations or environmental changes
• Field-cuttable housing up to 48 in length for custom door widths
• Master module supports daisy-chaining with up to eight monitored or nine unmonitored slave modules for wider door installations
• Auxiliary background analysis mode available to further minimize false activations

Specifications:

• Technology: Active Infrared with Background Suppression
• Detection Mode: Presence (Triangulation Distance Measurement)
• Power Supply: 12-24 VAC/VDC ~10 Percent
• Detection Range: 0-8 ft
• Distance Adjustment: 2-8 ft via rotating cam with linear adjustment
• Maximum Mounting Height: 8 ft
• Detection Signal Duration: Infinite Presence Detection
• Detection Time: Less Than 50 ms
• Output Hold Time: Adjustable 0.1-4.5 s via potentiometer
• Output Interface: Relay-Max Contact Rating 1 A at 30 V (Resistive)
• Operating Temperature Range: -30 F to 140 F
• Material / Housing: Aluminum & ABS-Black
• Protection Degree: IP54
• PCB Dimensions-Primary Module: 10.91 in W x 1.5 in H; Secondary Module: 8.75 in W x 1.5 in H
