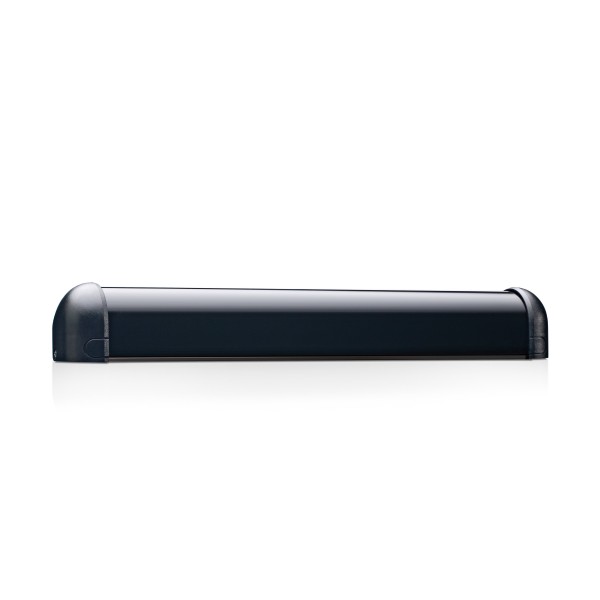

BEA SuperScan II Primary & Secondary Presence Sensor Units (42" for 44" Doors) - 10SSTII42

Using infrared technology, the BEA SuperScan II Primary & Secondary Presence Sensor Units (42" for 44" Doors) provide precise presence detection across the entire doorway in diverse conditions. Built for 44” doors, this sensor features adjustable detection zones, reducing the amount of missed movement. Compact in design, the BEA SuperScan II Primary & Secondary Presence Sensor Units (42" for 44" Doors) are ideal for high-traffic environments and swing, folding, or low-energy doors.

Features:

• Triangulation Technology Measures Distance and Detects Pedestrians While the Door Is Opening or Closing
li>Field-Cuttable Housing and Daisy-Chaining Capability Up to Nine Modules for Wider Door Applications
• Door-mounted Active Infrared Presence Sensor Assembly for Automatic Swinging, Revolving, Folding and Low-Energy Doors
• Includes One Primary Module & One Secondary Module Preconfigured for a 44"" Door Leaf Width

Specifications:

• PCB Dimensions-Primary Module: 10.91 in x 1.5 in; Secondary Module: 8.75 in x 1.5 in
• Technology: Active Infrared With Background Suppression
• Detection Mode: Presence (Triangulation Distance Measurement)
• Maximum Mounting Height: 8 ft
• Distance Adjustment: 2-8 ft via Rotating Cam With Linear Adjustment
• Power Supply: 12-24 VAC/VDC ~10 Percent
