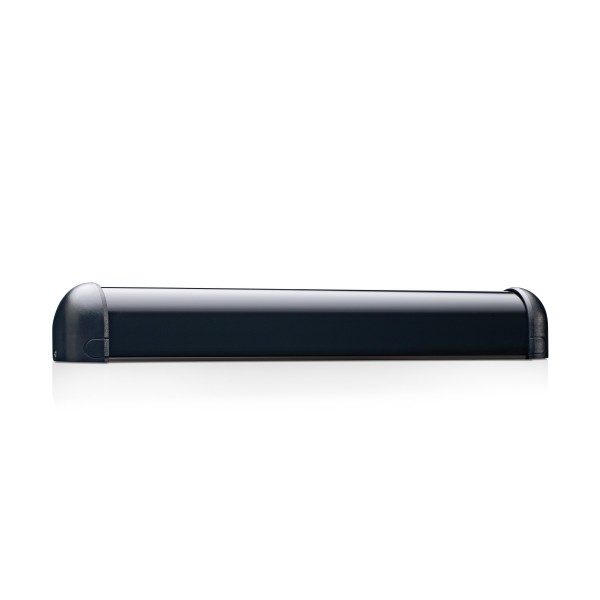

BEA SuperScan II Primary & Secondary Presence Sensor Units (48" for 50"+ Doors) - 10SSTII48

Key Features:

• Door-mounted Active Infrared Presence Sensor Assembly for Automatic Swinging, Revolving, Folding and Low-Energy Doors
• Includes One Primary Module & One Secondary Module Preconfigured for a 50"+ Door Leaf Width
• Triangulation Technology Measures Distance and Detects Pedestrians While the Door Is Opening or Closing
• Field-Cuttable Housing and Daisy-Chaining Capability Up to Nine Modules for Wider Door Applications
• Background Analysis Mode Available to Minimize False Activations Due to Floor Variations or Environmental Conditions

Specifications:

• Technology: Active Infrared With Background Suppression
• Detection Mode: Presence (Triangulation Distance Measurement)
• Power Supply: 12-24 VAC/VDC ~10 Percent
• Detection Range: 0 - 8 ft
• Distance Adjustment: 2 - 8 ft via Rotating Cam With Linear Adjustment
• Maximum Mounting Height: 8 ft
• Detection Signal Duration: Infinite Presence Detection
• Detection Time: Less Than 50 ms
• Output Hold Time: Adjustable-0.1 - 4.5 s via Potentiometer
• Output Interface: Relay-Max Contact Rating: 1 A at 30 V (Resistive)
• Operating Temperature Range: -30 F to 140 F
• Material / Housing: Aluminum & ABS-Black
• Protection Degree: IP54
• PCB Dimensions-Primary Module: 10.91 in x 1.5 in; Secondary Module: 8.75 in x 1.5 in
