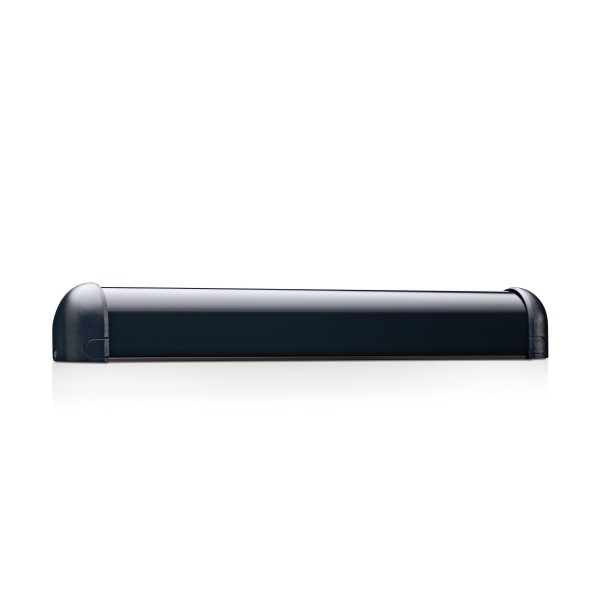

BEA SuperScan II Primary & Secondary Presence Sensor Units (Custom Length, 24.5" Minimum) - 10SSTIICUSTOM

Key Features:

• Door-mounted Active Infrared Presence Sensor Assembly for Automatic Swinging, Revolving, Folding and Low-Energy Doors
• Includes One Primary Module and One Secondary Module, Custom-Length Housing Starting at 24.5 in Minimum for Narrow or Unusual Door Widths
• Triangulation Technology Measures Distance to Detect Pedestrians While the Door Is Opening or Closing
• Field-Cuttable Housing and Daisy-Chaining Capability for Wide or Custom Door Installations
• Background Analysis Mode Available to Minimize False Activations Due to Floor Variations or Environmental Conditions

Specifications:

• Technology: Active Infrared With Background Suppression
• Detection Mode: Presence (Triangulation Distance Measurement)
• Supply Voltage: 12-24 VAC/VDC ~10 Percent
• Detection Range: 0-8 ft
• Distance Adjustment: 2-8 ft via Rotating Cam With Linear Adjustment
• Maximum Mounting Height: 8 ft
• Detection Signal Duration: Infinite Presence Detection
• Detection Time: Less Than 50 ms
• Output Hold Time: Adjustable-0.1-4.5 s via Potentiometer
• Output Interface: Relay-Max Contact Rating: 1 A at 30 V (Resistive)
• Operating Temperature Range: -30 F to 140 F
• Material / Housing: Aluminum & ABS-Black
• Protection Degree: IP54
• PCB Dimensions-Primary Module: 10.91 in x 1.5 in; Secondary Module: 8.75 in x 1.5 in
