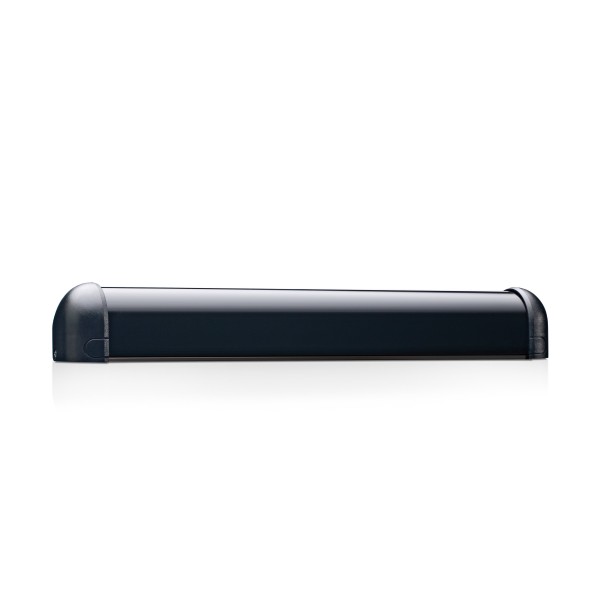

BEA SuperScan III Primary & 2x Secondary Presence Sensor Units (36" for 36" Doors) - 10SSTIII

Integrating one primary and two secondary modules, the BEA SuperScan III Primary & 2x Secondary Presence Sensor Units (36" for 36" Doors) provides complete coverage for 36'' automatic doors. This sensor features seamless connectivity between modules across the entire door width, providing excellent coverage. Built with durability in mind, the BEA SuperScan III Primary & 2x Secondary Presence Sensor Units (36" for 36" Doors) offer customizability and safety to your automatic doors.

Features:

• Door-mounted Active Infrared Presence Sensor Assembly for Automatic Swinging, Revolving, Folding and Low-Energy Doors
• Includes One Primary Module & Two Secondary Modules Pre-configured for 36"" Door Leaf Width
• Triangulation Technology Measures Distance and Detects Pedestrians While the Door Is Opening or Closing
• Field-Cuttable Housing and Daisy-Chaining Capability for Wider Door Applications (up to Nine Modules)

Specifications:

• Technology: Active Infrared With Background Suppression
• Detection Mode: Presence (Triangulation Distance Measurement)
• Power Supply: 12-24 VAC/VDC ~10 Percent
• PCB Dimensions - Primary Module: 10.91 in x 1.5 in; Secondary Module: 8.75 in x 1.5 in
• Distance Adjustment: 2-8 ft via Rotating Cam With Linear Adjustment
• Maximum Mounting Height: 8 ft
