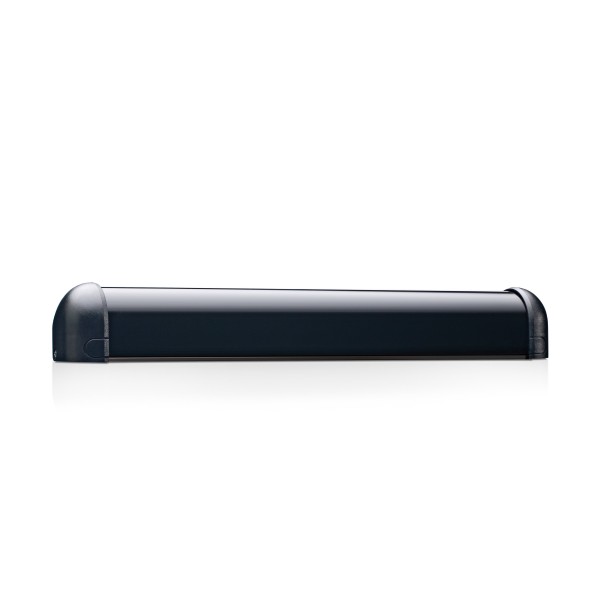

BEA SuperScan III Primary & 2x Secondary Presence Sensor Units (Custom Length, 34.5" Minimum) - 10SSTIIICUSTOM

Providing adaptable sensing, the BEA SuperScan III Primary & 2x Secondary Presence Sensor Units (Custom Length, 34.5" Minimum) is designed to fit custom doors. With adjustable housing, this sensor can detect movement precisely across a doorway in diverse conditions. Built with versatility in mind, the BEA SuperScan III Primary & 2x Secondary Presence Sensor Units (Custom Length, 34.5" Minimum) enable safe and continuous operation in high-traffic environments.

Features:

• Door-mounted Active Infrared Presence Sensor Assembly for Automatic Swinging, Revolving, Folding and Low-Energy Doors
• Triangulation Technology Measures Distance and Detects Pedestrians While the Door Is Opening or Closing
• Field-Cuttable Housing and Daisy-Chaining Capability for Wider or Custom Door Installations
• Custom-Length Housing Starting at 24.5 in Minimum for Narrow or Specialty Door Applications

Specifications:

• Technology: Active Infrared With Background Suppression
• Detection Mode: Presence (Triangulation Distance Measurement)
• Power Supply: 12-24 VAC/VDC ~10 Percent
• PCB Dimensions - Primary Module: 10.91 in x 1.5 in; Secondary Module: 8.75 in x 1.5 in
• Maximum Mounting Height: 8 ft
• Distance Adjustment: 2-8 ft via Rotating Cam With Linear Adjustment
