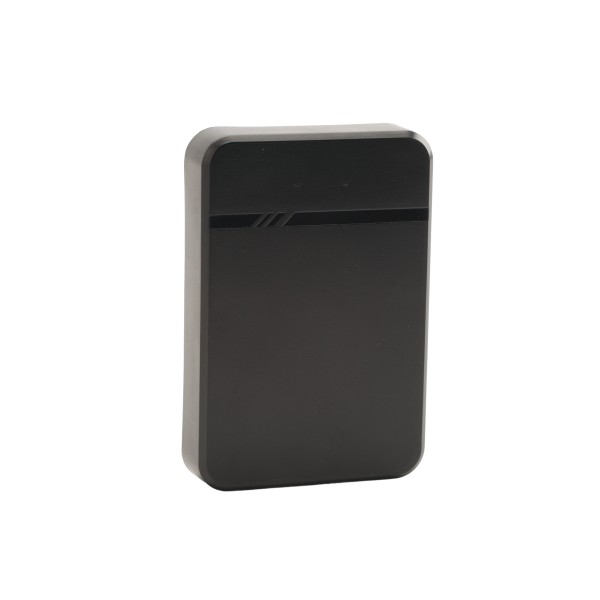

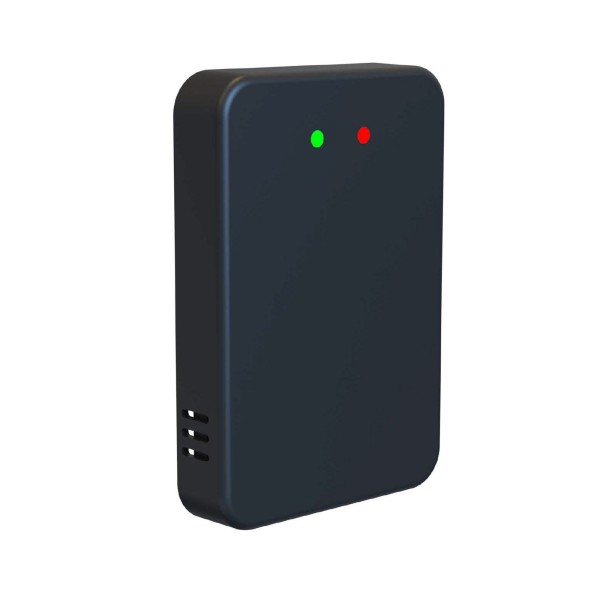

Bircher EasyLoop D.6 Above Ground Virtual Loop Detector

The Bircher EasyLoop D.6 is an above ground virtual loop detector designed to replace traditional in ground induction loops for vehicle detection. It provides reliable detection for gate and barrier applications while eliminating the need for cutting pavement or installing wire loops.

Key features:

• Above ground installation
• Setup and tuning through a Bluetooth mobile app
• Dual function operation for presence detection or activation use cases
• Object differentiation to filter pedestrian traffic
• IP66 rated housing for high dust and water protection
• Integrates with existing systems using Bluetooth and RS485 interfaces

Specifications:

• Presence detection or activation sensor
• Technology: Microwave radar
• Transmission frequency: 60 GHz
• Detection distance: 3.3 ft to 19.7 ft, default 9.8 ft, configurable via mobile app
• Detection width: 1.6 ft to 5.0 ft per side, configurable via mobile app
• Interface: Bluetooth and RS485
• Supply voltage: 9 VDC to 24 VDC, 12 V and 1 A preferred
• Power consumption: Less than 2.5 W
• Output: NO and NC dual relay
• Response time: 100 ms
• Wiring: 10 pin
• Connection type: 3.9 ft cable with plug connector
• Installation height: Minimum 20 inches, maximum 26 inches
• Protection class: IP66
• Certifications: FCC, CE, RoHS
