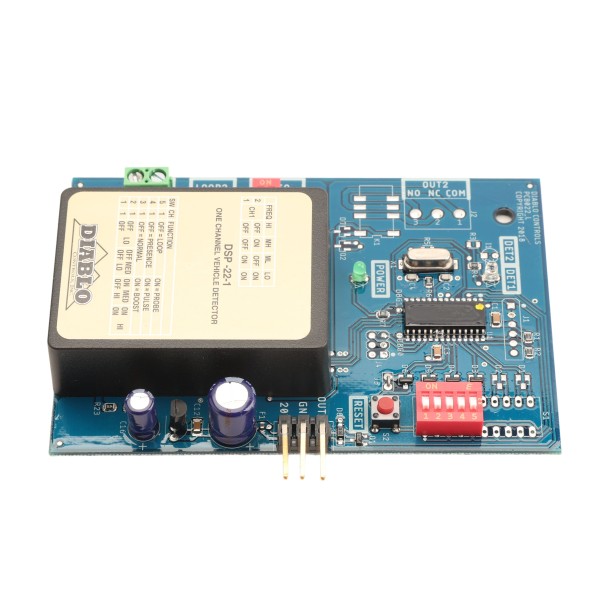

Diablo Dual Single Channel Plug-In Vehicle Detector (12-30V DC) - DSP-22-1

The Diablo DSP-22-1 Single Channel Plug-In Vehicle Detector is a switchless single-channel vehicle detector product designed to work with DoorKing operators. This plug-in one-channel vehicle detector will operate on 18V DC nominal power and will add a new dimension of simplicity to a plug-in detector applications. It works with on any in-ground inductive loop from 20 to 1500 microHenrys and has separate Power/Fail and detect LEDs for both channels.

Features:

• Rest/Sensitivity Button
• Virtually Crosstalk Free In Most Applications
• Designed To Work With Doorking Operators
• Power interruptions of short duration are ignored
• Separate Power/Fail and Detect LEDs for both channels

Specifications:

• Humidity: 0 to 95% relative
• Storage Temperature: -67°F to 185°F
• Operating Temperature: -35°F to 165°F
• Dimensions: 4.4" (H) X 3" (W) 0.8" (D)
• Power: 10-30 VDC, 100 mA maximum
• 7-Pin Connector For External Connections
• 3 position Male Connector for linking with the gate operator
• Outputs: Solid-State (Open Transistor Collector) For Channel 1, SPDT - 1 Amp Relay Output For Channel 2

DSP222 Cut Sheet
