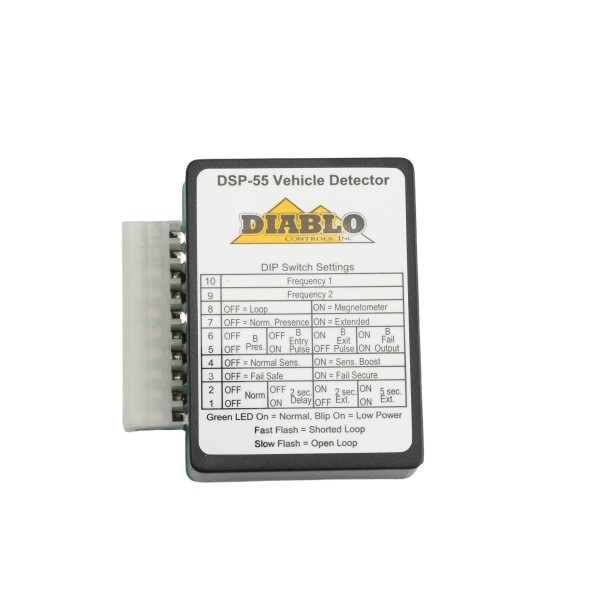

Diablo DSP-55 Plug In Vehicle Detector (8-35V, DC)

The DSP-55 detector is a new compact vehicle detector that is able to operate on any voltage from 8 to 35V DC. A low-voltage range makes this detector ideal for solar powered application and it's is intended to be used as a full-featured single channel detector that can work with both inductive loops as well as newer mini-loops. Thanks to a high-performance 8-bit microcontroller, it has more than enough power to ensure top-notch performance. With a small footprint, it can retrofit into many existing locations that may require a detector upgrade, allowing this device to meet all potential vehicle detector needs.

Features:

• Green And Red LED Indicators
• 10 Selectable Sensitivity Settings
• High Performance 8-Bit Microcontroller
• Designed To Be Buried In The Ground To Detect Vehicles
• Three Solid-State Outputs, Called A, B And -B Outputs
• Can Be Connected To A Standard Inductive Loop Or Mini-Loop

Specifications:

• Relays: NC, C
• Power: 8 To 35V DC
• Configuration: 10-position DIP switch
• Operating Temperature: -35°F To 165°F
• Dimensions: 2.375" (H) X 0.86" (W) X 2.25" (D)
• Enclosure: Impact Resistant, High Temperature Plastic

DSP-55 Manual

DSP-55 Cut Sheet
