AES E-Trans 100 Transceiver - ETRANS100
Details
AES E-Trans 100 Transceiver - ETRANS100

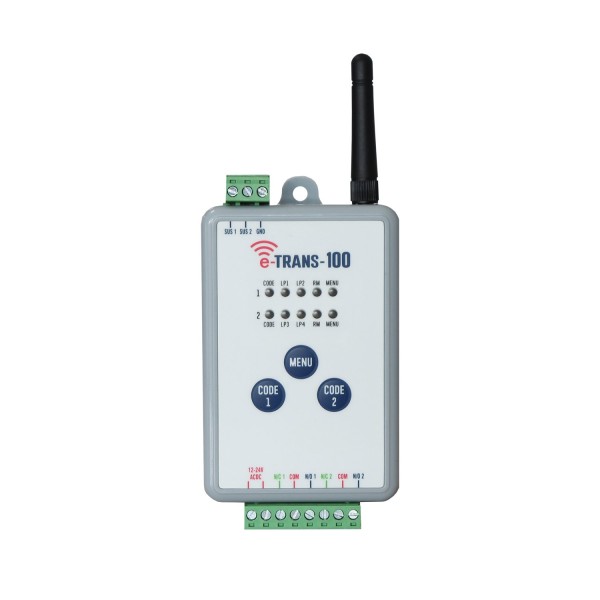

The e-Trans 100 is a two-channel long-range wireless transceiver that can work with both gates or automatic doors. The small design allows it to be easily installed without compromising on the range.
Specifications
- Two-Channel
- Stores 2 e-Loops and 50 remotes per channel
- 10-28VAC or 10-36VDC power input
- Low 12mA current draw in standby mode
- Optional LDC mode
- 4.5mA (Solar Applications)
- Frequency: 433.39 MHz
- Bandwidth:250 Hz
- 128bit AES encryption
- 2 x 1A relay contacts
- NC/NO/COM
- Pulse latch or hold mode
| SKU | ETRANS100 |
|---|---|
| Product | Transceiver |
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
12 DC, 12 AC, 24 DC, 24 AC, 36 DC, 36 AC |
| Voltage | 10-36V AC/DC |
| Manufacturer | AES Global, LLC |
