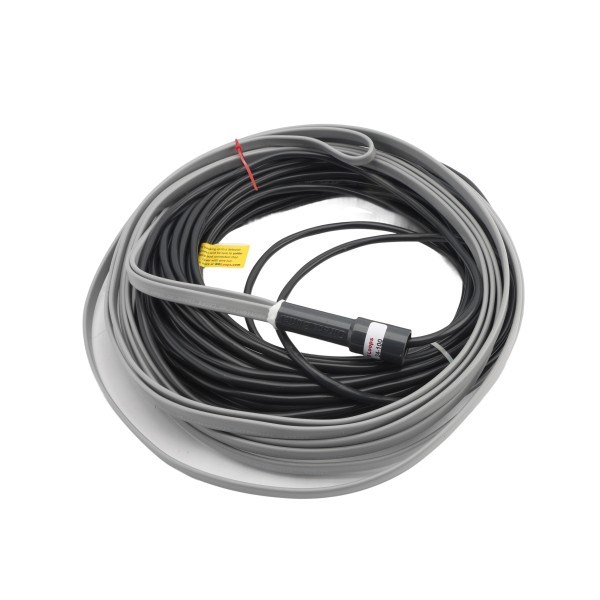

EL 24-100 24' Direct Burial Exit Loop With 100' Lead-In

EL 24-100 24' Direct Burial Exit Loop With 100' Lead-In
$130.76
The EL 24-100 is used in installations under concrete, asphalt, or gravel roads and the wire used is UL 493 certified and designed for burial application.

OR

Call (800) 878-7829

Details

The EL 24-100 Direct Burial Exit Loop is designed for us under concrete, asphalt, pavers or gravel roads. Made of 14 AWG wire, it's designed to be durable and easy to install. With its 24' size and 100' lead-in, this loop is engineered for surface areas with a smaller width. A common installation of this loop is to tie it directly to the rebar before the concrete is poured. The wire used is UL 493 certified and designed for burial application. Without an air pocket, it prevents phantom detections caused by ground vibrations.

Features:

  • Very Rigid
  • No Air Pocket
  • Direct Burial Rated Wire
  • Does Not Follow Rebar Pattern
  • 2.5 Wire Resistance Per Foot
  • Loop Doesn't Have To Be Wrapped In The Field
  • Easy To Reposition Flex Yoke With 1/2" Coupler
  • Includes Cable Ties, Ground Stakes, Stickers For Easy Identification

Loop Specifications:

  • Diameter: 0.0641"
  • Loop Type: Direct Burial
  • Loop Size: 24' (4'X8' or 6'x6')
  • Conductor: #14 AWG

Lead-In Cable Specifications:

  • Length: 100'
  • Diameter: 0.0641"
  • Conductor: #14 AWG

Additional Information

SKU EL 24-100
Product Preformed Loop
Lead-In Size 100'
Loop Size 24'
Loop Type Direct Burial
Manufacturer BD Loops, Inc.

EL 24-100 24' Direct Burial Exit Loop With 100' Lead-In
