EMX Drive Thru Alert Kit (Prewired Enclosure) - DAK-1ULTMVP

Details

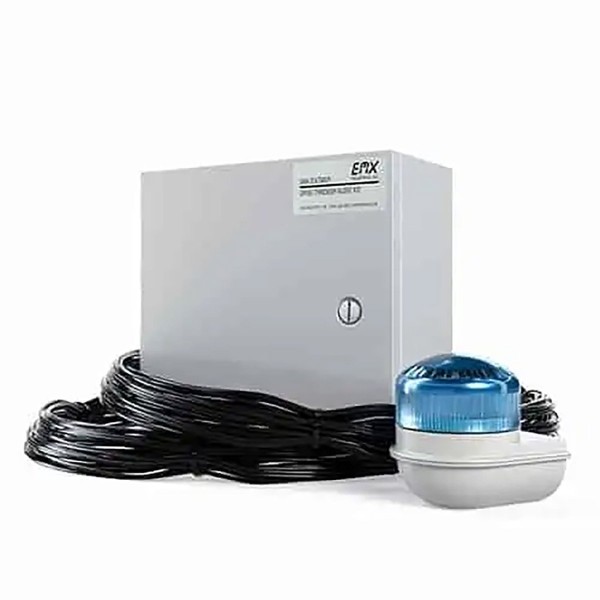

EMX Drive Thru Alert Kit (Prewired Enclosure) - DAK-1ULTMVP

The EMX Drive-Thru Alert Kit comes with everything you need to get your drive thru up and running in no time at all. This prewired kit provides an audio and visual indication to team members that need to know when a customer's vehicle has pulled into the drive-thru lane. This system can be used in a wide variety of drive-thru applications requiring 1 detection zone, including fast-food restaurants, banking, or even a car wash. The kit comes pre-wired and with everything you need including a loop detector, loop sensor, as well as an alert/chime.

The panel inside the junction box will have the transformer and ULT-MVP vehicle detectors mounted and prewired. Terminal blocks inside the panel will be available for easy connection of incoming power (120 VAC) and wire connections to the PR-46 loops and LED beacon. All of the vehicle detectors and the LED beacon will be preprogrammed and ready to go out of the box.

Specifications

• Sensitivity: 10 levels, 0-9)
• ULTRAMETER Display: Indicates optimum sensitivity level, 0-9 Diagnostic aid)
• Loop frequency: 4 settings (low, med-low, med-hi, high))
• Loop inductance: 202000 UH (Q factor > 5))
• Grounded loop: Isolation transformer allows operation with poor quality loops)
• Automatic tuning: Detector tunes to loop on power-up and following frequency count function)
• Environmental tracking: Automatic compensation)
• Surge protection: Loop circuitry protected by surge suppressors)
• Presence relay: SPDT relay contacts (form C))
• Output B relay: SPDT relay contacts (form C))
• Contact rating (resistive load): 2A @ 30VDC, 0.5A @ 125VAC)
• Power: 1260 VDC (Max. 0.8 VA) 12240 VAC (4862Hz) (Max. 1.4 VA))
• Operating current: 20mA standby / 50mA detect)
• Operating temperature: -40 Degree C to 82 Degree C (-40 Degree F to 180 Degree F) 095% relative humidity)
• Dimensions (L x W x H): 73mm (2.9") x 38mm (1.2") x 78mm (3.1"))
• Housing: ABS plastic, IP30)
• Connections: Socket mount 11 pin male (JEDEC B11-88)
