EMX LOW VOLTAGE - DIRECT WIRE - SINGLE CHANNEL - SINGLE RELAY - ULT-II
Details
EMX LOW VOLTAGE - DIRECT WIRE - SINGLE CHANNEL - SINGLE RELAY - ULT-II

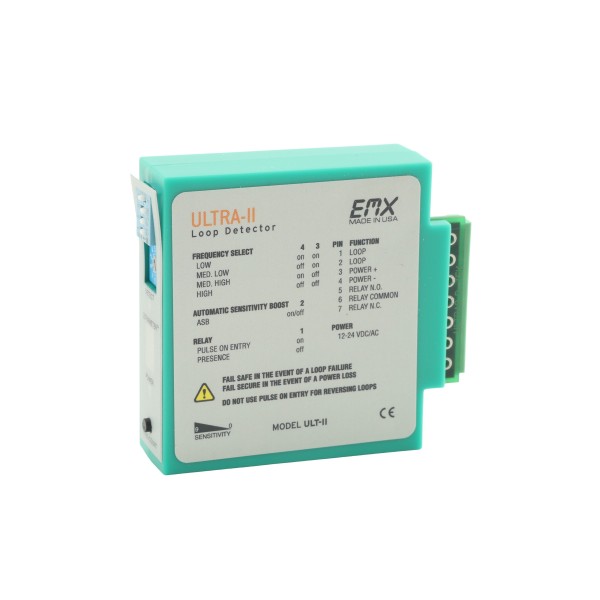

The ULT-11 is an energy-efficient and user-friendly vehicle loop detector with a detachable 7-pin terminal block. Its compact design and detachable features simplify set-up. It provides a relay output indicating vehicle presence or pulse on entry, with an option for an automatic sensitivity boost.
Features
- Easy to Install
- ULTRAMETER Display
- 10 Sensitivity Settings
- 4 Frequency Selections
- Fail Safe & Fail Secure
- Loop Diagnostics
Vehicle Loop Detectors
| Model | Output | Power | Channel | Housing | Connection | Detect-On-Stop | ULTRAMETER Sensitivity Display | Detection Modes | Features |
|---|---|---|---|---|---|---|---|---|---|
| MVP D-TEK | Dual Relay | Multi-voltage 12 VDC - 240 VAC | Single | Aluminum | 11-pin | - | - | Presence & Motion | Pulse on entry/exit |
| ULT-MVP | Dual Relay | Multi-voltage 12 VDC - 240 VAC | Single | ABS | 11-pin | Yes | Yes | Presence & Motion | Pulse on entry/exit |
| ULT-MVP-2 | Dual Relay | Multi-voltage 12 VDC - 240 VAC | Dual | ABS | 11-pin | Yes | Yes | Presence & Motion | Pulse on entry; A/B logic |
| ULT-DIN | Dual Relay | 12-24 VDC/AC | Single | ABS | DIN rail screw terminal | Yes | Yes | Presence & Motion | Pulse on entry |
| ULT-PLG | Discrete | 12-24 VDC | Single | ABS | 10-pin female | Yes | Yes | Presence & Motion | Pulse on entry/exit |
| ULT-II | Relay | 12-30 VDC, 24 VAC | Single | ABS | 7 position screw terminal | - | Yes | Presence & Motion | Pulse on entry |
| LP D-TEK | Dual Relay | 12-24 VDC/AC | Single | Aluminum | 11-pin | - | - | Presence & Motion | Pulse on entry/exit |
| SKU | ULT-II |
|---|---|
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
12 DC, 12 AC, 24 DC, 24 AC |
| Product | Loop Detector |
| Secure Side Status | Fail-Safe |
| Pin | Removable 7-Pin Terminal Block |
| Manufacturer | EMX Industries, Inc. |
