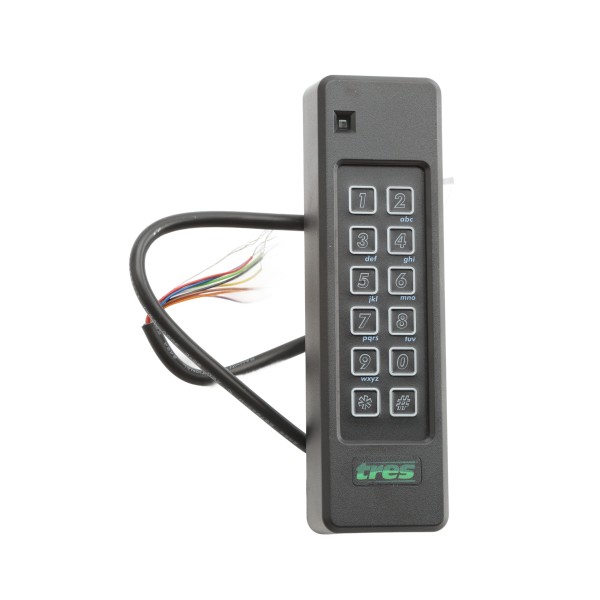

EMX TRES Proximity Reader/Keypad With 5" Read Range, 26-Bit Wiegand Output & HID or AWID Formats - TRES-100-P-620-HA

The TRES-100-P-620-HA proximity reader offers a passive option to access a gate or door and features a helpful keypad. It has high-quality construction and is compatible with Weigand communication protocols. The latest RFID technology helps it to detect proximity cards from 5 inches away.
Part Number: TRES-100-P-620-HA

$202.80 each
OR


Details

EMX TRES Proximity Reader/Keypad With 5" Read Range, 26-Bit Wiegand Output & HID or AWID Formats - TRES-100-P-620-HA

The TRES-100-P-620-HA proximity reader and keypad from EMX has solid construction while boasting top-tier performance. It has advanced features such as MAXSecure and fleaPower to offer security and usability. Mount it on a variety of surfaces. This device is based on RFID technology. It is compatible with Weigand communication protocols. It has a read range of around 5 inches.

Key Features:

  • Reliable 125-kHz Technology
  • Uses The Latest RFID Protocols
  • Measurements: 1.78?W x 6.1?H x 0.91?D
  • Will Work With Several Electronic Access Control Systems With Wiegand
  • MaxSecure And fleaPower Technology
  • Can Be Mounted On Doors Or Window Frames
  • No Batteries Needed
  • Is Compatible With FCC, ICC, CE, C-Tick, UL Standard 2941, and IP67 Certifications

Specifications:

  • RFID Type: 125-kHz Proximity RFID
  • Operating Frequency: 125 kHz
  • Read Range: 5"
  • Current Draw: 70 mA typical, 110 mA peak @ 12 VDC
  • IP Code: IP67
  • Supported Technology: Pyramid Series Proximity Cards, Specific HID 125-kHz Proximity Protocols Compatible With Pyramid +, And Certain AWID 125-kHz Proximity Protocols Compatible With Pyramid +
SKU TRES-100-P-620-HA
Product Proximity Reader
Reading Range 5"
Manufacturer EMX Industries, Inc.
