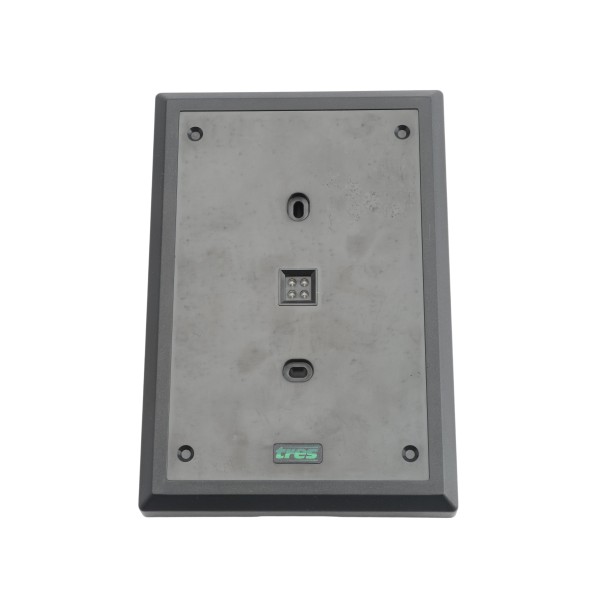

EMX TRES Proximity Reader With 15" Read Range, 26-Bit Wiegand Output & HID or AWID Formats - TRES-100-P-710-HA

Details

EMX TRES Proximity Reader With 15" Read Range, 26-Bit Wiegand Output & HID or AWID Formats - TRES-100-P-710-HA

The TRES-100-P-710-HA proximity reader from EMX has solid construction while boasting top-tier performance. It has advanced features such as MAXSecure and fleaPower to offer security and usability. Mount it on metal doors or window frames. This device is based on RFID technology. It is compatible with Weigand communication protocols. It has a read range of around 15 inches.

Key Features:

• Reliable 125-kHz Technology
• Uses The Latest RFID Protocols
• Measurements: 6?W x 8.5?H x 1?D
• Will Work With Several Electronic Access Control Systems
• MaxSecure And fleaPower Technology
• Can Be Mounted On Metal Doors Or Window Frames
• No Batteries Needed
• Is Compatible With FCC, ICC, CE, C-Tick, UL Standard 2941, and IP67 Certifications

Specifications:

• RFID Type: 125-kHz Proximity RFID
• Operating Frequency: 125 kHz
• Read Range: 15"
• Power Supply: +5 -16 VDC, 215 mA typical, 600 mA peak@ 12 VDCVDC
• Applications: Electronic Access Control Systems
• Operating Temperatures: -40 Degrees F To 149 Degrees F
• Supported Technology: Pyramid Series Proximity Cards, Specific HID 125-kHz Proximity Protocols Compatible With Pyramid +, And Certain AWID 125-kHz Proximity Protocols Compatible With Pyramid +
