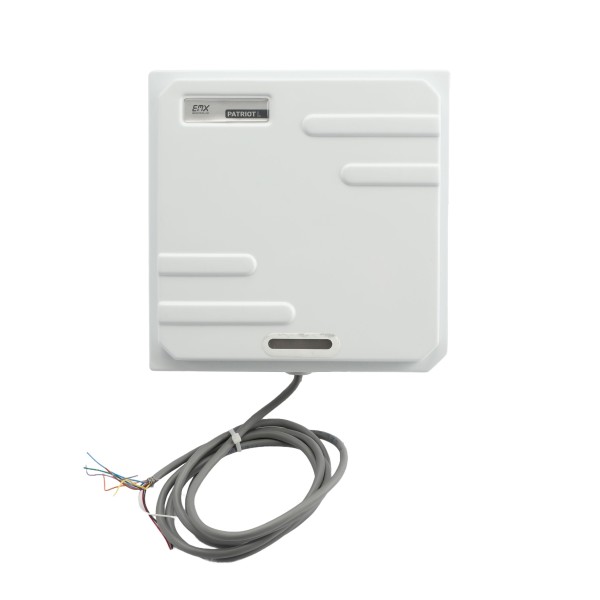

EMX TRES Patriot RFID Long Range Reader,26-Bit Wieg, Multi-Format With Linear Antenna - Patriot-L

The Patriot L is an affordable RFID reader that is compatible with multiple Wiegand formats and has a weather-resistant design. It includes a long read range of 18 to 25 feet and offers an LED and sounder indicator.
Part Number: Patriot-L

$1,369.91 each
OR


Details

EMX TRES Patriot RFID Long Range Reader,26-Bit Wieg, Multi-Format With Linear Antenna - Patriot-L

The Patriot L is an RFID reader for various Wiegand formats and communication protocols. It has an extensive read range and a durable, weather-resistant design. The Patriot L has an LED indicator and a built-in relay. It can work with several power inputs and functions in many access control scenarios.

Key Features:

  • Supports Wiegand Formats
  • Affordable But Quality Reader With RS232 Protocols
  • LED Indicator
  • Frequency Hopping Between 902 - 928mHZ
  • Timing For LED, Buffer, and Wiegand
  • Controllable LED Timing And Buzzer
  • dBm Levels

Specifications:

  • TX/RX Frequency: 902-928 MHz
  • Max RF Power: 30dBm
  • Average Read Range: 18-25 Feet
  • Antenna: Linear 10dBi (Gain)
  • LED Indicator and Sounder Indicator: Yes
  • Supply Voltage: 9-48VDC
  • Included Power Supply: 110/240AC to 12VDC
  • Included Mounting Bracket: Yes
  • Max Current: 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode)
  • Store 500 Authorized Tag Numbers (5 Site Codes And 100 Tags)
  • FCC Approved For Part 15
  • Operating Temperatures: -4 Degrees F To 158 Degrees F
  • Size: 9.45" x 9.45" x 3.82"
  • Rated For IP65

Cut Sheet

SKU Patriot-L
Product Proximity Reader
Reading Range 18' - 25'
Manufacturer EMX Industries, Inc.
