EMX RX & TX Photo Eye for Overhead Doors - PC-3
Details
EMX RX & TX Photo Eye for Overhead Doors - PC-3

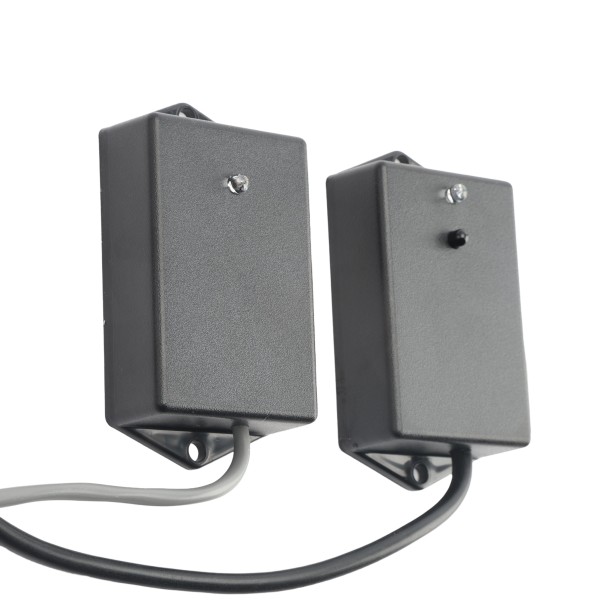

The PC-3 is an infrared modulated photo eye. It includes a receiver and transmitter, which are used in conjunction with an automatic opener. It is compatible with any control board that accepts dry contacts as safety input, is easy to install, and cost effective.
Features
- LED alignment indicator.
- Supervised relay output provides "open" signal in case of power failure.
- Non-reflective through-beam system is not affected by metallic surfaces.
- Infrared beam is not affected by sunlight, rain, dust, or dirt.
- No calibration or sensitivity adjustments required.
- 24 degree detection angle.
- Indoor or protected outdoor operation of 30 feet.
Specifications
- Range: 30 feet
- Power: 12V-24V AC or DC
- Relay Contacts: 1A at 24VDC or 120VAC
- 18' lead wire
- Black PVC Housing
Photoeyes - Thru Beam
| Model | Operating Range | Output | Power | Monitoring Method | Housing | Rating | Connection | Sensitivity Adjustment | Features |
|---|---|---|---|---|---|---|---|---|---|
| IRB-MON | Up to 115 ft. (35 m) | Relay & Pulse | 6-35 VDC, 12-24 VAC | 2 wire pulse, NC, 10K | Polycarbonate | NEMA 4X | TX - 2 terminals; RX - 5 terminals | Potentiometer | UL325 monitored |
| IRB-325 | Up to 65 ft. (20 m) | Relay | 12-24 VDC/AC | NC | Polycarbonate | NEMA 4X | TX - 2 terminals; RX - 5 terminals | Jumper | UL325 monitored |
| IRB-4X | Up to 115 ft. (35 m) | Relay | 12-24 VDC/AC | - | Polycarbonate | NEMA 4X | TX - 2 terminals; RX - 5 terminals | Potentiometer | Explosion-proof aluminum housing available (IRB-EXP) |
| PC-3 | Up to 30 ft. (9 m) | Relay | 12-24 VDC/AC | - | PVC | IP50 | TX - 2 wire; RX - 5 wire | - | - |
| BPE-50 | Up to 50 ft. (15 m) | Relay | 12-24 VDC/AC | - | Polycarbonate | IP66 | TX - 2 terminals; RX - 5 terminals | Jumper | Battery powered TX-2-3.6 VDC (2 AA lithium batteries) |
| SKU | PC-3 |
|---|---|
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
12 DC, 12 AC, 24 DC, 24 AC |
| Product | Photo Eye |
| Photo Eye Type | Through-Beam |
| Manufacturer | EMX Industries, Inc. |
