EMX Single Cut LRS Vehicle Detector Sensor - Flat Pack Vehicle Detector Sensor With 100' Lead-In Wire - LRS-FP-100

Details

EMX Single Cut LRS Vehicle Detector Sensor - Flat Pack Vehicle Detector Sensor With 100' Lead-In Wire - LRS-FP-100

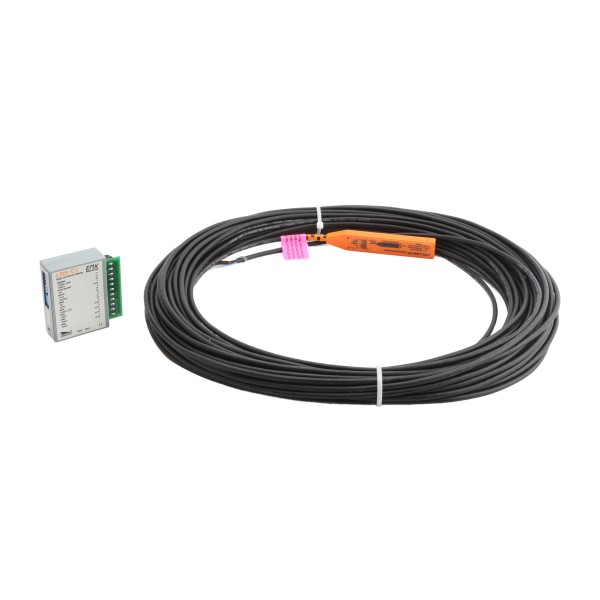

EMX Flat Pack Vehicle Detector Sensor is a magnetoresistive direct burial sensor with a 100' lead wire that stores ambient background and settings in non-volatile memory. Engineered for direct use with EMX LRS Single Cut Installation Vehicle Detector Control Unit LRS-C1. The Single Cut Loop Replacement System features advanced 3-axis magnetoresistive sensing technology in which the sensor measures the magnetic field in an x, y, and z, axes, improving detection sensitivity and responding to any disturbances that ferrous objects make.

Applications:

• Boom Gate Control
• Beverage Drive Thru
• Fast Food Drive Thru
• Loading Dock Detection
• Car Park And Toll Booth Vehicle Monitoring
• Truck, Tow-Motor Detection For Shipping Doors & Industrial Gates

Features:

• Flat Pack Direct Burial Sensor by EMX
• Fast Response, High-Speed Detection
• Selectively Designed, Reduced False Triggers
• Responds To Disturbances Caused By Ferrous Objects
• Great For Tight Spaces, Ignores Cross Traffic For Accuracy
• Detect-On-Stop Allows Detection When Vehicle Comes Full Stop
• Three-Dimensional Presence Detection - select X, Y, or Z Axis Independently
• Stand-Alone Sensor Stores Background And Settings In A Non-Volatile Memory

Specifications:

• Housing: Polyolefin
• Current Draw: 10 mA max
• Power Supply: 12-30 VDC
• Output Ratings: 50 mA
• Outputs: NPN (Open Collector
• Environmental Rating: IP69K
• Dimensions: 3.0"" (80mm) x 0.8"" (20mm) x 0.35"" (9mm)

Specification Sheet
