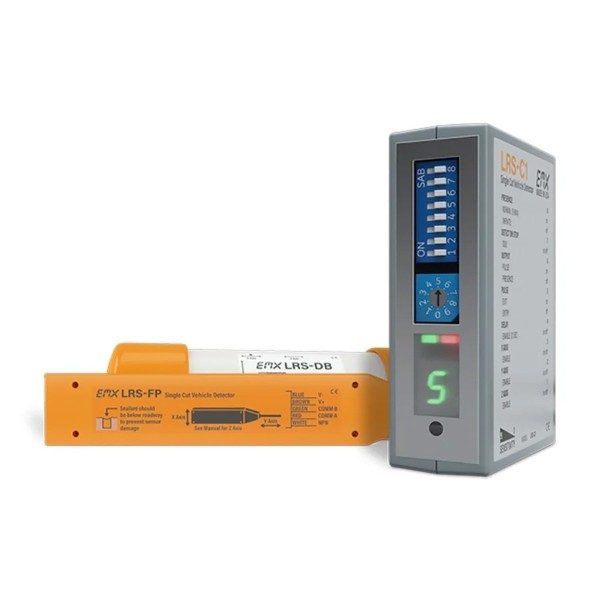

EMX Single Cut LRS Vehicle Detector Sensor Kit - Flat Pack Vehicle Detector Sensor With 50' Lead-In Wire and LRS Controller - LRS-FP-50-K
Details
EMX Single Cut LRS Vehicle Detector Sensor Kit - Flat Pack Vehicle Detector Sensor With 50' Lead-In Wire and LRS Controller - LRS-FP-50-K
The Single Cut Loop Replacement System features advanced 3-axis magnetoresistive sensing technology in which the sensor measures the magnetic field in an x, y, and z, axes, improving detection sensitivity and responding to any disturbances that ferrous objects make. This high-sensitivity, compact Vehicle Detector Sensor Kit offers a cost-effective solution for vehicle detection that is easy to install in the pavement with a single saw cut. The rugged sensor can be used for above-grade installs, which makes it suitable for tight or confined areas or even non-ferrous architectural components for security.
Features:
- Fast-Responde For High-Speed Detection
- ULTRAMETER Sensitivity Display For Set-Up
- Control Module For Programming And Relay Contact Output
- EMX-Exclusive Technology Ignores Cross-Traffic In Tight Spaces
- Cost-Effection Solution, Installs In Pavement With Single Saw Cut
- Three-Dimensional Presence Detection - select X, Y, or Z Axis Independently
- Stand-Alone Sensor Stores Background And Settings In A Non-Volatile Memory
Applications:
- Car Washes
- Loading Docks
- Parking & Traffic
- Drive-Thru Windows
- Automated Gates & Doors
Specifications:
- Detection Range: 5 ft. (1.5m)
- Detect Indicator: Red LED
- Power/Fault Indicator: Green LED
- Power Supply: 12-30 VDC and 24 VAC
- Sensing Technology: 3-Axis Magnetoresistive
- ULTRAMETER Display: 10 Levels Of Sensitivity: 0-9
- Control Unit Dimensions: 76mm (3.0") x 22mm(0.9") x 70mm(2.75")
- Sensor Dimensions: FP - 108mm (4.3") x 22mm (0.9") x 9mm (0.3")
"
Loop-Less Magnetoresistive Vehicle Detector
| Model | Operating Range | Output | Power | Channel | Housing | Rating | Connection | Detect-On-Stop | ULTRAMETER Sensitivity Display | Installation | Detection Material | Mounting | Detection Mode | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LRS-FP-KIT | 4 ft. radius (1.5 m); 10 ft. dia. (3 m) | Relay | 12-30 VDC | Single | PVC | IP69K | 10-position screw terminal / 5 wire to probe | Yes | Yes | Single Saw Cut | Ferrous Metal | Below Ground | Presence & Motion | Retains programmed settings through powerdown |
| LRS-DB-KIT | 5 ft. radius (1.5 m); 10 ft. dia. (3 m) | Relay | 12-30 VDC | Single | ABS/PVC | IP69K | 10-position screw terminal / 5 wire to probe | Yes | Yes | Core Drill | Ferrous Metal | Above or Below Ground | Presence & Motion | Retains programmed settings through powerdown |
| LRS-L | 20 ft. (6 m) or more with multiple FP or DBs | Dual relay | 12-30 VDC / 24 VAC | Dual | ABS | IP30 | 11-pin | Yes | - | In Operator | - | Above Ground | Presence & Motion | Provides extended detection, A/B Logic and more |
| SKU | LRS-FP-50-K |
|---|---|
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
12 DC, 24 DC, 24 AC |
| Product | Vehicle Detector |
| Manufacturer | EMX Industries, Inc. |
