EMX NIR-50-325 Retroreflective Photoeye Kit UL325 NC / 10K Across N.O. Contact - NIR-50-325-KIT-SENSOR-REFLECTOR-HOOD

Details

EMX NIR-50-325 Retroreflective Photoeye Kit UL325 NC / 10K Across N.O. Contact - NIR-50-325-KIT-SENSOR-REFLECTOR-HOOD

The Retro-Reflective Photo Eye kit, designed and manufactured by EMX, comes with the Retroreflective photoeye which is an external entrapment, type B1, protection device for automatic gates and doors. It has a 50' operating range and is UL 325 compliant. With a pulsed near-infrared light beam and reflector, this device does not require wiring on the opposite side of the photo-eye. This photo-eye has a highly compatible design and includes the mounting bracket and hardware necessary for installation.

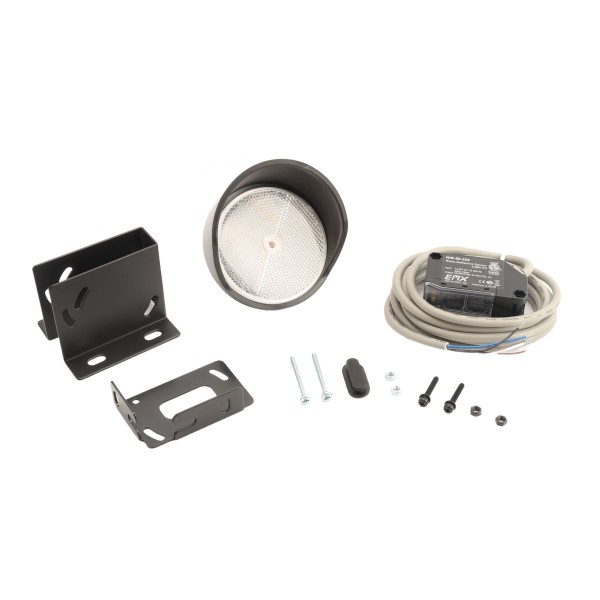

Kit Contents

• NIR-50-325 Photoeye
• Hood for NIR
• Reflector
• Hood for Reflector
• Mounting Bracket

Features:

• IP66 IEC Enclosure
• UL325-2018 Compliant
• Type: Retro-Reflective Photoeye
• External Non-Contact Sensor (Type B1)
• Configured For 10k Monitored Operation
• Mounting Bracket and Hardware Included
• Compact Size, Easy To Move And Install
• Sensitivity Adjustments Via Potentiometer
• Watertight Package Ensures Reliable Outdoor Installation And Use
• Monitored Entrapment Protection For Overhead Doors, Gates, And Barriers

Specifications:

• Current Draw: 83mA
• Response Time: 10ms
• Operating Range: 50'
• Alignment Indicator: Red LED
• Dimensions: 1.3" x 0.8" x 2.6"
• Connections: 5 wires, 6.5' (2m) Cable
• Sensitivity Adjustment: Potentiometer
• Signal Stability Indicator: Yellow LED
• Power: 12-30VDC, 24-30VAC @ 60 Hz
• Environmental Protection: IP 66 IEC
• Resistive Termination: 10k Ohm (Internal)
• Operating Temperature: -4 Degree to -131 Degree F (-20 Degree to -55 Degree C)
• Relay Output: Form C contacts (NO, COM, NC), 30VAC/VDC, 2A
