Exterior Airswitch, 3 Wire in Metal Enclosure - MMTC 32SPDT
Details

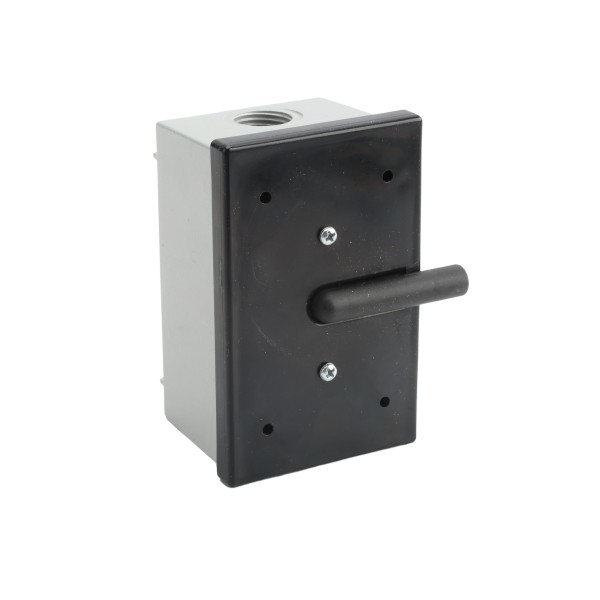

Exterior Airswitch, 3 Wire in Metal Enclosure - MMTC 32SPDT
Made by MMTC, the 3-Wire Exterior Air Switch is housed in a metal enclosure for protection and functionality in industrial settings. When the switch is pushed, a pulse of air is sent toward the control unit, traveling through a hose. Once the air signal reaches the control unit, it turns on the power. Thanks to a NEMA 4-rated housing enclosure, this switch is built to withstand the elements and its sensitivity can be adjust by simply turning either screw clockwise or counterclockwise.
Features:
- Metal Housing
- 3-Wire Setup
- Single Pole, Double Throw
- Housing Is NEMA 4-Rated For Protection
- Adjust Sensitivity By Turning Either Screw
Specifications:
- Rated: 6-120V, 2 Amp
- Momentary Activation Only
- Normally Open And Normally Closed
- Max Pressure: 20 Lbs. Per Square Inch
- Operating Pressure: 1/4 Oz. Per Square Inch
- Dimensions: 4 3/4" (H) X 3" (W) X 2 1/4" (D)
| SKU | 32SPDT |
|---|---|
| Product | Airswitch |
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
12 DC, 12 AC, 24 DC, 24 AC, 36 DC, 36 AC, 48 DC, 48 AC, 110/115/120 AC (60 Hz, 1 Phase) |
| Material | Steel |
| Usage | Interior |
| Product Type | Air Switches |
| Wire Type | 3 Wire |
| Manufacturer | MMTC, Inc. |
