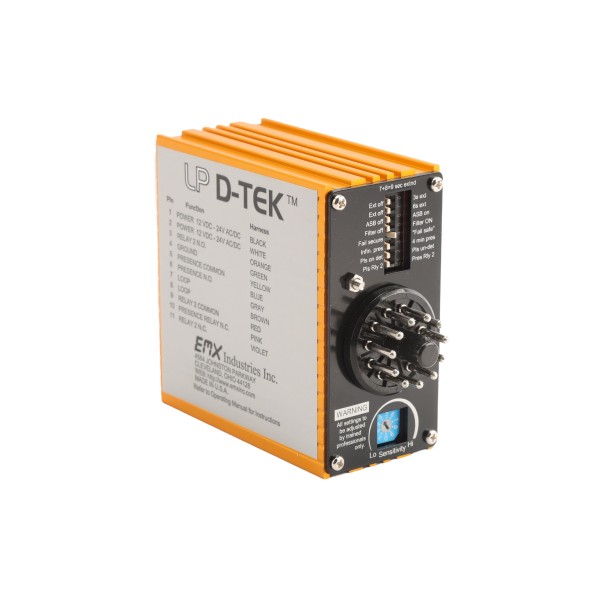

EMX Low Power "Fail Safe or Fail Secure" Vehicle Loop Detector (9 mA current draw standby and detect modes “fail safe”) - LP-D-TEK

EMX low power, 11-pin, single channel with dual relay, Vehicle Loop Detector. The loop detector has a fail safe or fail secure setting.


Part Number: LP-D-TEK
Quantity Price Each
  1+$97.11
  10+$91.26


Details

EMX Low Power "Fail Safe or Fail Secure" Vehicle Loop Detector (9 mA current draw standby and detect modes “fail safe”) - LP-D-TEK

Features

  • 2 Relays
  • Surge Protection
  • Loop Diagnostics
  • Frequency Counter
  • Built-In Loop Conditioner
  • Loop Isolation Transformer
  • Gold Plated Control Contacts
  • Aluminum RF Shield Housing
  • 9 mA Current Draw Standby And Detect Modes "Fail Safe"

Specifications

  • Current Consumption
  • Output Relays Amp: 30V DC
  • Power Supply: 12 – 24V AC/DC
  • Surge Protection: Zener Diode /Mov
  • Operating Temperature: -40°F To 180°F
  • Housing: Extruded Anodized Aluminum
  • Connector: 86cp11 11 Pin Male
  • Tuning: Automatic On Reset Or Power Up
  • Dimensions: 3.25” (H) X 2.56” (W) X 3.65” (L)
  • Tracking: Automatic For Environmental Changes
  • Loop Inductance Range: 20 – 2000 Uh Q-Factor Of 5 Or Higher
  • Loop Input: Transformer Isolation, Lightning And Transient Protection

LP-D-TEK Manual

LP-D-TEK Specifications

Name EMX Low Power "Fail Safe or Fail Secure" Vehicle Loop Detector (9 mA current draw standby and detect modes “fail safe”) - LP-D-TEK
SKU LP-D-TEK
Product Loop Detector
Product Type Loop Detectors
Loop Channels Single Channel
Voltage 12-24V AC/DC
Pin 11 Pin
Secure Side Status Optional
Manufacturer EMX Industries, Inc.
Price $97.11
