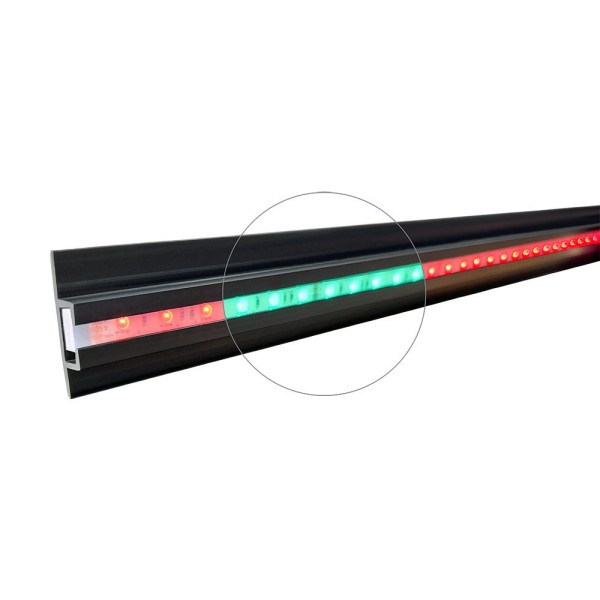

Miller Edge 12' Orion LED Strip for Sectional & Rolling Doors - LED-ORION-24-K12

Specifications:

• Brightness: Red: 532 lm/m, Green: 2,392 lm/m

• Signaling:

• Door Opened: Solid green (constant)
• Door Opening: Flashing red
• Door Closed: Solid red (constant)
• Door Closing: Flashing red
• Lifespan: 44,000 hours
• Activation: Hardwired to the commercial door operator through the Door LED Controller
• Operating Temperature: -30° to +140°F (-34° to 60°C)
• Power Source: 115-230V AC wall supply; LED strip operates at 24V DC
• Controller Box Dimensions: 7 W x 9.5 H x 4 D-in. (178 x 241 x 102 mm)

• Cable Lengths:

• LED strip length: 11-ft. 8-in (3.56 m)
• LED strip cable: 1-ft. (0.3 m)
• LED strip extension cable: 4-ft. (2.4 m)
• CDO signal cable: 20-ft. (6.1 m)
• Power supply cable: 3-ft. (0.9 m)
• LED Strip: UV protected silicone sheath
• Mounting Channels: High density rigid PVC

• Controller LED Indicators

• Door Opened: Solid green (constant)
• Door Opening: Solid white (constant)
• Door Closed: Solid red (constant)
• Door Closing: Solid white (constant)
• LED strip Rating: IP67
• Controller box Rating: NEMA 4
