14' Miller Edge Orion LED Strip for Sectional and Rolling Doors
Details

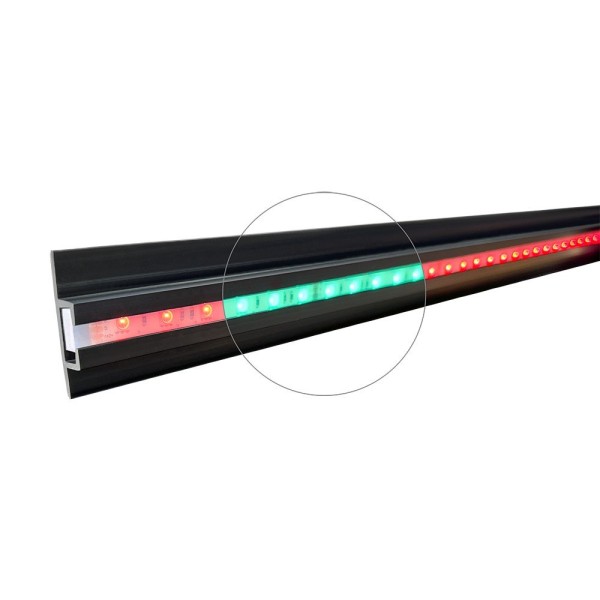

14' Miller Edge Orion LED Strip for Sectional and Rolling Doors
As the largest size in the Orion LED signaling family, the 14' Miller Edge Orion LED Strip for Sectional and Rolling Doors LED strip is engineered for commercial doors. Continuous, always-on LED visibility alerts pedestrians and vehicles to door position and movement throughout the day. This strip includes color-coded signaling that clearly communicates door status: green when open, red when closed, and red flashing when motion is detected. Loading docks, large industrial facilities, and high-traffic areas benefit from this enhanced safety solution.
Specifications:
- Brightness: Red: 532 lm/m, Green: 2,392 lm/m
Signaling:
- Door Opened: Solid green (constant)
- Door Opening: Flashing red
- Door Closed: Solid red (constant)
- Door Closing: Flashing red
- Lifespan: 44,000 hours
- Activation: Hardwired to the commercial door operator through the Door LED Controller
- Operating Temperature: -30° to +140°F (-34° to 60°C)
- Power Source: 115-230V AC wall supply; LED strip operates at 24V DC
- Controller Box Dimensions: 7 W x 9.5 H x 4 D-in. (178 x 241 x 102 mm)
Cable Lengths:
- LED strip length: 14-ft. (4.27 m)
- LED strip cable: 1-ft. (0.3 m)
- LED strip extension cable: 4-ft. (2.4 m)
- CDO signal cable: 20-ft. (6.1 m)
- Power supply cable: 3-ft. (0.9 m)
- LED Strip: UV protected silicone sheath
- Mounting Channels: High density rigid PVC
Controller LED Indicators:
- Door Opened: Solid green (constant)
- Door Opening: Solid white (constant)
- Door Closed: Solid red (constant)
- Door Closing: Solid white (constant)
- LED strip Rating: IP67
- Controller box Rating: NEMA 4
| SKU | LED-ORION-24-K14 |
|---|---|
| Specification Sheet | Download PDF file |
| Installation Guide | Download PDF file |
| Length | 14 ft |
