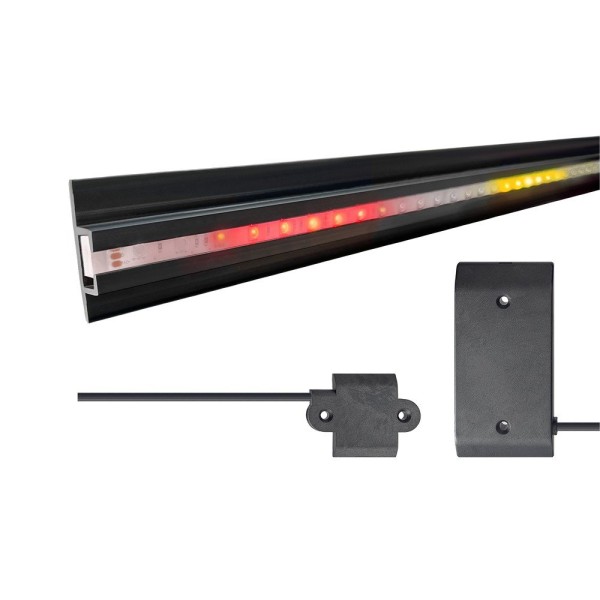

8' Miller Edge Phoenix LED Alert Strip for Rolling Steel Doors

Transform your rolling steel door into a visual communication system with the Miller Edge Phoenix LED Alert Strip. This 8-foot safety beacon cuts through ambient noise with its brilliant red-and-green LED display, instantly telling workers whether the door is opening, closing, or secure. The smart motion-activated design means no complicated wiring - it springs to life the moment the door moves, scanning red/yellow during operation and glowing solid green when fully open. With its built-in lithium battery and inductive charging, you'll get 60 hours of worry-free operation between charges, perfect for high-traffic loading docks. The rugged IP68-rated construction shrugs off dust, moisture, and impacts, making it the last alert strip you'll ever need to buy.

Specifications:

• Brightness: Red = 80 lumens/m, Green = 220 lumens/m
• Signaling: Red/yellow scanner pattern: Opening
• Solid green Appox. 6 secs: Open
• Red scanner pattern: Closing
• Solid red Appox. 6 secs: Closed
• Lifespan: 30,000 hours
• Runtime: Up to 60 hours of runtime or Appox. 100 door cycles per charge
• Activation: Motion via accelerometer
• Operating Temperature: Charge: 32° to 113°F (0° to 45°C), Discharge: -4° to 140°C (-20° to 60°C)
• Agency Approvals: FCC
• Power Source: Receiver: 3.7V 800 mAh lithium-ion battery
• Transmitter Power Supply: Input: 100-240VAC 50/60 Hz, Output: 5VDC 1.5A
• Charging: Inductive; full charge in 6-8 hours
• Battery Charge Current: 100 mA nominal
• Power Output (TX): 5V, 1500mA
• Dimensions: LED Strip/Mounting Channel: 8-ft. (2.44 m)
• Power RX & TX Enclosures: 1-13/16 W x 5-3/4 H x 1-3/4 D in. (46 x 146 x 44 mm)
• LED Strip: 48-in.
• Power RX g Receiver: 19.5-in.
• Transmitter g Power TX: 18-in.
• Power TX g Power Supply: 55.5-in.
• LED Strip: UV protected silicone sheath
• Mounting Channels: High density rigid PVC
• Charging Pads: Mounting brackets
• LED Light Strip Enclosure: IP68
• Power RX & TX Enclosures: NEMA 4

• Mounting:

• LED Light Strip: Universal mounting channels and rolling door channel clips
• Charging Pads: Mounting brackets
